ALTV248

CCTV Power Supply, 8 Fused Outputs, 24/28VAC @ 4A, 115VAC, BC100 Enclosure

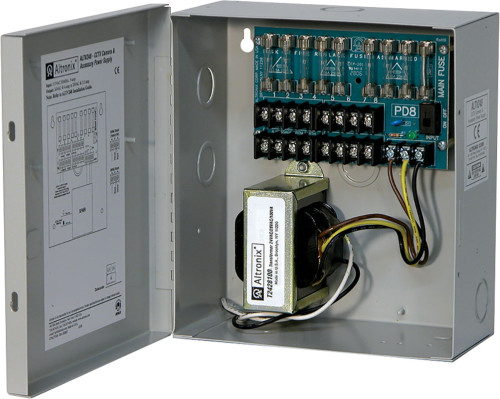

ALTV248 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

  • Input
    • 115VAC, 50/60Hz, 0.9A.
  • Output
    • Eight (8) fuse protected outputs.
    • 24VAC @ 4A (100VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.438A per device, 3.5A max.).
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Features
    • Secondary fuse rated @ 5A/250V.
    • AC power LED.
    • Power ON/OFF switch.
    • Spare fuses provided. (all models w/primary and/or secondary fuses).
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VAC: 49 TU/Hr.
        • 28VAC: 50 BTU/Hr.
    • System AC input VA requirement: 103.5VA.

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.5 Lbs. (2.9 kg).
  • Shipping Weight: 7 Lbs. (3.2 kg).
