• LINQ Technology Features
  • LINQ2 Features
  • LINQ8PD/LINQ8PDCB Features
  • LINQ Models

Our innovative LINQ™ technology fills the void in network communications for mission critical power distribution applications. Power and transmission solutions integrated at multiple sites are easily managed and monitored remotely. LINQ reports diagnostics via Email/Windows Dashboard notifications greatly reducing system downtime and eliminating unnecessary service calls while creating RMR opportunities.

Communicate over the network with LINQ.

  • Facilitates quick and accurate diagnostics to reduce or eliminate costly service calls
  • Local or remote control of power or distribution output(s) via the network
  • Email and Windows Dashboard notifications report real-time (or delayed) power diagnostics.
  • Event log tracks history
  • Secure Socket Layer (SSL).
  • Programmable via USB or web browser - includes operating software and 6 ft. USB cable.
  • Battery Service Reminder
  • Compatible with Altronix® LINQ™ Dashboard Central Management Software.
LINQ

Altronix LINQ2 network module is designed to interface with eFlow and MaximalF power supply/chargers. It enables power supply status monitoring and control of two (2) eFlow power supply/chargers over a LAN/WAN or USB connection. LINQ2 provides values on demand for AC fault status, DC current and voltage, as well as Battery fault status and reports conditions via Windows Dashboard.

  • Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN.
  • Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
  • Access control and user managment: Restrict read/write, Restrict users to specific resources
  • Two (2) integral network controlled Form “C” Relays.
  • Three (3) programmable input triggers: Control relays and power supplies via external hardware sources.
LINQ2

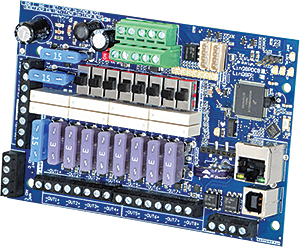

Altronix LINQ8PD/LINQ8PDCB network power distribution module facilitates monitoring, reporting and control of one (1) or two (2) low voltage AC or supervised DC power supply/chargers over the network. Reports diagnostics via Email/Windows Dashboard notifications greatly reducing system downtime and eliminating unnecessary service calls. LINQ8PD/LINQ8PD retrofits with most currently installed multi-output power supply/chargers.

LINQ8PD/LINQ8PDCB Features

  • Facilitates monitoring, reporting and control of one (1) or two (2) low voltage AC or supervised DC power supply/chargers over the network.
  • Retrofits with most currently installed multi-output power supply/chargers.
  • Control power output(s) locally or remotely.
  • Output voltage is individually selectable for each of the eight (8) outputs when utilizing two (2) power supplies.
LINQ8PD
Model Number Description
LINQ2
Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
LINQ8ACM
Network Access Power Controller, 8 Fused Outputs, Board
LINQ8ACMCB
Network Access Power Controller, 8 PTC Class 2 power-limited Outputs, Board
LINQ8PD
Networkable Power Distribution Module, 8 Fused Outputs, Control, Monitor and Report Individual Output Diagnostics
LINQ8PDCB
Networkable Power Distribution Module, 8 PTC Outputs, Control, Monitor and Report Individual Output Diagnostics
