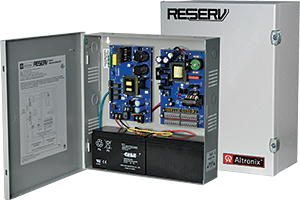

ReServ Video Surveillance UPS units are designed to simultaneously provide power for 12VDC and 24VAC cameras during normal or power outage conditions. True sine wave regulated AC outputs and regulated DC outputs.

  • 115VAC 60Hz input (models with 220VAC input available)
  • Ensures power for your cameras and security devices during normal, brownout and power outage conditions
  • Provides true sine-wave regulated 24VAC, filtered and regulated 12VDC or both simultaneously
  • Up to 90 minutes of backup time
  • Various power output configurations
  • Indoor and outdoor models available
Pace Group

115VAC Input Models

Model Number Description
ReServ1
Video Surveillance UPS, 4 PTC Outputs 12VDC @ 2A and 12 PTC Outputs 24VAC @ 4A, 115VAC, Battery Charging, BC300 Enclosure
ReServ1V
Video Surveillance UPS, 4 PTC Outputs 12VDC @ 2A and 12 PTC Outputs 24VAC @ 4A, 230VAC, Battery Charging, BC300 Enclosure
ReServ1WP
Video Surveillance UPS, 4 PTC Outputs 12VDC @ 2A and 12 PTC Outputs 24VAC @ 4A, 115VAC, Battery Charging, WP2 Outdoor Enclosure
ReServ2
Video Surveillance UPS, 16 PTC Outputs 24VAC @ 4A, 115VAC, Battery Charging, BC300 Enclosure
ReServ2V
Video Surveillance UPS, 16 PTC Outputs 24VAC @ 4A, 230VAC, Battery Charging, BC300 Enclosure
ReServ2WP
Video Surveillance UPS, 16 PTC Outputs 24VAC @ 4A, 115VAC, Battery Charging, WP2 Outdoor Enclosure
ReServ3
Video Surveillance UPS, 16 PTC Outputs 12VDC @ 8A, 115VAC, Battery Charging, BC300 Enclosure
ReServ3V
Video Surveillance UPS, 16 PTC Outputs 12VDC @ 8A, 230VAC, Battery Charging, BC300 Enclosure
ReServ3WP
Video Surveillance UPS, 16 PTC Outputs 12VDC @ 8A, 115VAC, Battery Charging, WP2 Outdoor Enclosure
ReServ4WP
Video Surveillance UPS, 2 PTC Outputs 12VDC @ 1A and 2 PTC Outputs 24VAC @ 4A, 115VAC, Battery Charging, WP2 Outdoor Enclosure

220VAC Input Models

Model Number Description
ReServ1WPV
Video Surveillance UPS, 4 PTC Outputs 12VDC @ 2A and 12 PTC Outputs 24VAC @ 4A, 220VAC, Battery Charging, WP2 Outdoor Enclosure
ReServ2WPV
Video Surveillance UPS, 16 PTC Outputs 24VAC @ 4A, 220VAC, Battery Charging, WP2 Outdoor Enclosure
ReServ3WPV
Video Surveillance UPS, 16 PTC Outputs 12VDC @ 8A, 220VAC, Battery Charging, WP2 Outdoor Enclosure
ReServ4WPV
Video Surveillance UPS, 2 PTC Outputs 12VDC @ 1A and 2 PTC Outputs 24VAC @ 4A, 220VAC, Battery Charging, WP2 Outdoor Enclosure
