AL100UL

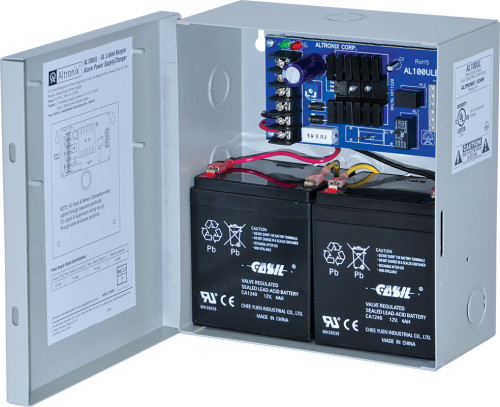

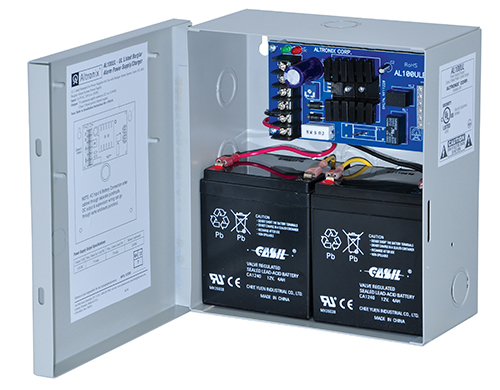

Altronix AL100UL linear power supply/charger converts a low voltage input into a 12VDC output.

Input
- 16.5VAC, 20VA from UL Listed, Class 2 transformer (sold separately).
Output
- 12VDC output.
- 750mA supply current.
- Class 2 Rated power limited output.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Charging
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switchover to stand-by battery when AC fails.
- Low battery disconnect prevents batteries from deep discharge.
- (Batteries are sold separately).
Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Temperature
- Operating: 0 to 49° C (32 to 120° F )
- Storage: - 20 to 70° C ( -4 to 158° F)
- Relative Humidity: 85% +/- 5%
- BTU/Hr. (approx.): 5 BTU/Hr.
- System AC input VA requirement: 26.45VA.
