AL1024RLB

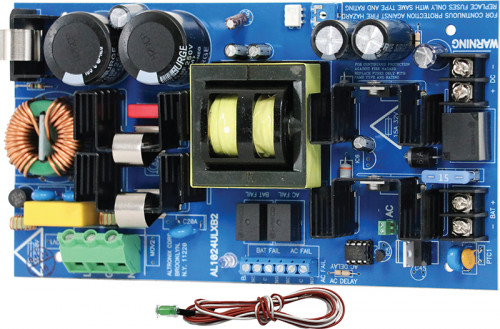

Power Supply Charger, With LED Cable Assembly, 24VDC @ 10A, 115VAC, Board

Altronix AL1024RLB power supply/charger converts 115VAC, 60Hz input into a single 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision. Includes LED cable assembly and LED lens.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 4.2A max.
    • Input Fuse: 5A/250V.
  • Output
    • Voltage: 24VDC (UL 1481)
    • Current: 8A continuous supply current with 10A supply current during alarm (UL 1481), 24VDC @ 10A (UL 294)
    • Other: Short circuit and thermal overload protection
    • Filtered and electronically regulated output
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Fuse Rating: 15A/32V
    • Failover Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form "C" contacts
    • Battery: Form "C" contacts
  • Indicators (LED)
    • Input: 115VAC is present
    • DC Output: Powered
    • Discharged or not connected
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 123 BTU/Hr.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
Power Supplies for use with Burglar Alarm Systems (UL603)
Power Supplies for Fire Protective Signaling Systems (UL1481)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment

Dimensions & Weight

Dimensions (approximate):
  • 4.505"W x 8.3"L x 1.955"H (114.427 mm W x 210.8 mm L x 49.657 mm H).
Weights (approximate):
  • Product Weigtht: 1.15 Lbs. (0.52 kg).
  • Shipping Weigtht: 1.45 Lbs. (0.66 kg).
