AL1024RLBV

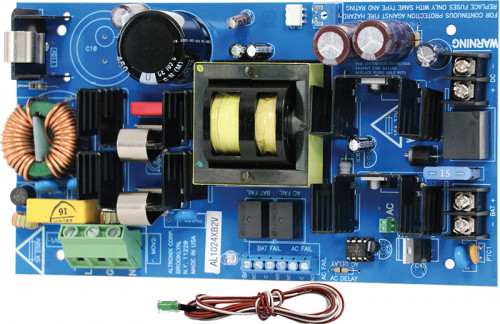

Power Supply Charger, With LED Cable Assembly, 24VDC @ 10A, 220VAC, Board

Altronix AL1024RLBV power supply/charger converts a 220VAC, 50/60Hz input into a single 24VDC output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision. Includes LED cable assembly and LED lens.

Specifications

  • Input
    • Voltage: 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.5A max.
    • Input fuse rated 5A/250V.
  • Output
    • Voltage: 24VDC
    • Current: 8A continuos supply current with 10A supply current during alarm
    • Other: Short circuit and thermal overload protection
    • Filtered and electronically regulated output.
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Fuse Rating: 15A/32V
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form "C" contacts
    • Battery: Form "C" contacts
  • Indicators (LED)
    • Input 220VAC is present
    • DC Output: Powered
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.) 123 BTU/Hr.

Dimensions & Weight

Dimensions (approximate):
  • 4.505"W x 8.3"L x 1.955"H (114.427 mm W x 210.8 mm L x 49.657 mm H).
Weights (approximate):
  • Product Weigtht: 1.15 Lbs. (0.52 kg).
  • Shipping Weigtht: 1.45 Lbs. (0.66 kg).
