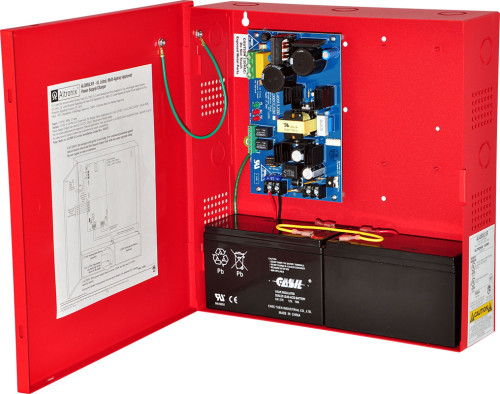

AL300ULXR

Power Supply Charger, Single Class 2 Output, 12/24VDC @ 2.5A, 115VAC, Red BC300 Enclosure

AL300ULXR is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.

Specifications

  • Input
    • Input 115VAC, 60Hz, 3.5A.
    • Input fuse rated @ 3.5A/250V.
  • Output
    • 12VDC or 24VDC selectable output.
    • Burglar Alarm Applications (UL 603):
    • 12VDC = 10VDC-13.2VDC.
    • 24VDC = 20VDC-26.4VDC.
    • 2.5A total supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input, DC output and Battery LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70°C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 12VDC: 15 BTU/Hr.
        • 24VDC: 31 BTU/Hr.
    • System AC input VA requirement: 402.5VA.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
Power Supplies for use with Burglar Alarm Systems (UL603)
Hospital Signaling and Nurse Call Equipment (UL1069)
Power Supplies for Fire Protective Signaling Systems (UL1481)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment
CSA Standard C603-M1988, Burglar Alarm System

CSFM - California State Fire Marshal Approved

MEA - NYC Department of Buildings Approved

NFPA 72 Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 6.65 Lbs. (3.1 kg).
  • Shipping Weigtht: 8.45 Lbs. (3.83 kg).
