AL600UL3X

Power Supply Charger, 3 PTC Class 2 Outputs, 5/12/24VDC @ 3A, 115VAC, BC400 Enclosure

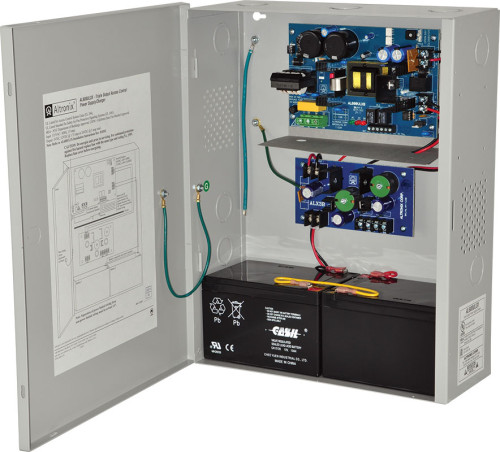

Altronix AL600UL3X triple output power supply/charger is designed for use with access control systems and accessories. It converts a 115VAC / 60Hz input into three (3) individually PTC protected 5VDC, 12VDC and 24VDC regulated outputs.

Specifications

  • Input
    • Input 115VAC, 60Hz, 3.5A.
  • Output
    • 5VDC, 12VDC, 24VDC simultaneous outputs.
    • 5VDC @ 1.75A continuous supply current.
    • 12VDC @ 1.75A continuous supply current.
    • 24VDC @ 3A continuous supply current.
    • Two (2) Class 2 Rated PTC protected power limited outputs (5VDC and 12VDC outputs) and one (1) PTC protected output.
    • Outputs are rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.7A.
    • Zero voltage drop when switched over to battery backup.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70°C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 52 BTU/Hr.
    • System AC input VA requirement: 218.5VA.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
Power Supplies for Fire Protective Signaling Systems (UL1481)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment

CSFM - California State Fire Marshal Approved

MEA - NYC Department of Buildings Approved

NFPA 72 Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weigtht: 9.8 Lbs. (4.45 kg).
  • Shipping Weigtht: 11.1 Lbs. (5.03 kg).
