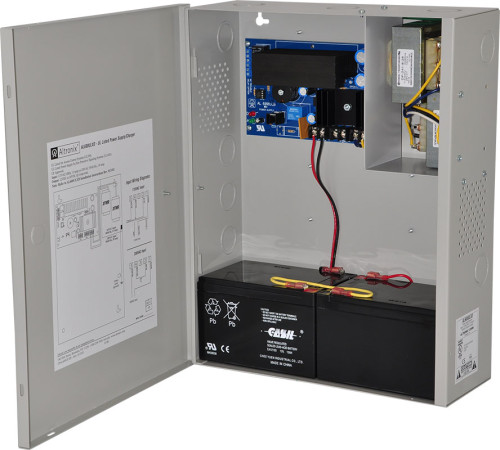

AL600ULXD

Power Supply Charger, Single Class 2 Output, 12/24VDC @ 6A, 115/230VAC, BC400 Enclosure

Altronix AL600ULXD power supply/charger converts a 115VAC 60Hz or 230VAC 50/60Hz input into a single 12VDC or 24VDC non power-limited output.

Specifications

  • Input
    • Input 115VAC / 60Hz, 3.5A or 230VAC 50/60Hz, 1.8A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 6A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.7A.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0 to 49° C (32 to 120° F )
    • Storage: -20 to 70° C ( -4 to 158° F)
    • Relative Humidity: 85% +/- 5%
      • BTU/Hr. (approx.):
        • 12VDC: 37 BTU/Hr.
        • 24VAC: 74 BTU/Hr.
    • System AC input VA requirement:
    • 115VAC: 402.5VA.
    • 230VAC: 414VA.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
Power Supplies for Fire Protective Signaling Systems (UL1481)

NFPA 72 Compliant

CE Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weigtht: 12.6 Lbs. (5.75 kg).
  • Shipping Weigtht: 13.9 Lbs. (6.3 kg).
