AL600ULXPD16CBR

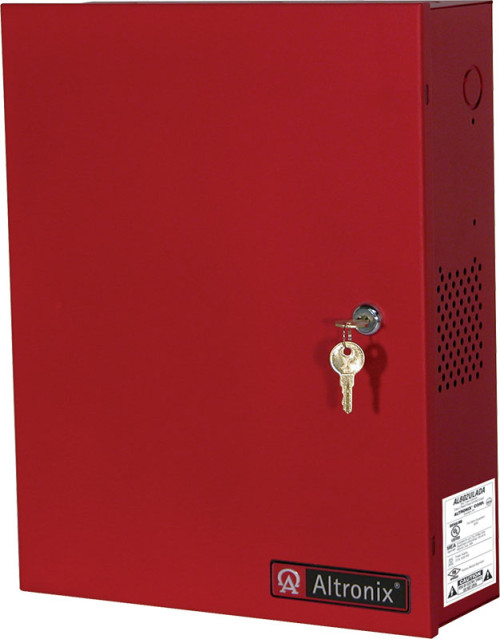

Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC @ 6A, 115VAC, Red BC400 Enclosure

AL600ULXPD16CBR is a multi-output power supply/charger that converts a 115VAC, 60Hz input into sixteen (16) 12VDC or 24VDC Class 2 Rated power-limited outputs.

Specifications

  • Input
    • Input 115VAC, 60Hz, 3.5A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 6A continuous supply current.
    • Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable).
    • Outputs are rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.7A.
    • Zero voltage drop when switched over to battery backup.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70°C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 12VDC: 37 BTU/Hr.
        • 24VDC: 74 BTU/Hr.
    • System AC input VA requirement: 402.5VA.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
Power Supplies for Fire Protective Signaling Systems (UL1481)

NFPA 72 Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weigtht: 8.95 Lbs. (4.06 kg).
  • Shipping Weigtht: 11.25 Lbs. (5.1 kg).
