AL62424C

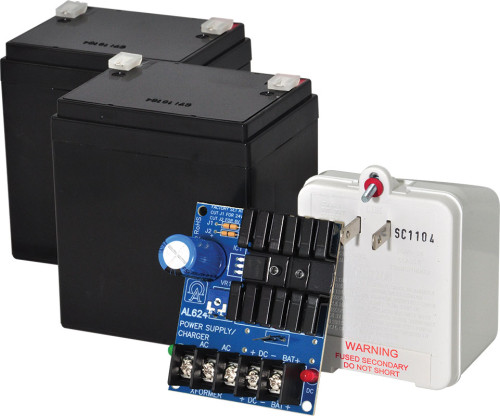

Linear Power Supply Charger, Single Class 2 Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, Board, includes 2 - BT124 and TP2420

AL624-24C linear power supply/charger kit has a wide range of applications including: access control, security and CCTV system accessories that require additional power.

  • Input
    • 115VAC, 60 Hz 1.67A.
  • Output
    • 24VDC output.
    • 24VDC @ 0.75A supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.3A.
    • PTC battery protection.
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Features
    • Power supply/charger with two (2) BT124 (12VDC/4AH) and TP2440 plug-in transformer (24VAC/40VA).
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 7 BTU/Hr.
    • System AC input VA requirement: 192.05VA.
Name Qty Description Agency Listings
AL624 1 Linear Power Supply Charger, Single Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, Board
BT124 2 Rechargeable Battery, Sealed lead acid (SLA), 12VDC, 4AH
TP2420 1 Plugin Transformer, 24VAC @ 20VA
Dimensions (approximate):
  • 2.5"W x 3"L x 1.5"H (63.5 mm W x 76.2 mm L x 38.1 mm H).
Weights (approximate):
  • Product Weight: 6.3 Lbs. (2.76 kg).
  • Shipping Weight: 7.1 Lbs. (3.22 kg).
