ALTV1224DC1

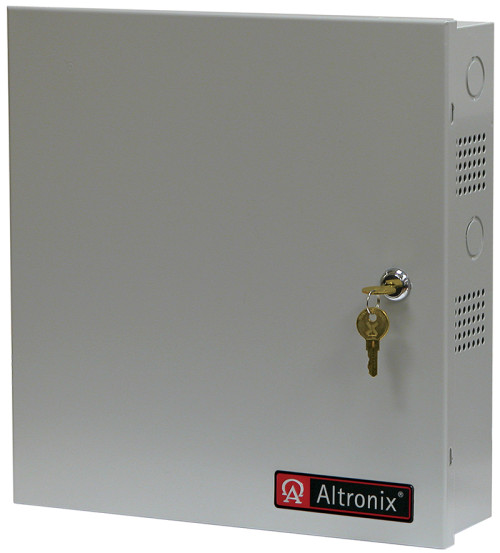

CCTV Power Supply, 16 Fused Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure

ALTV1224DC1 provides 12VDC or 24VDC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Specifications

  • Input
    • Input 115VAC, 50/60 Hz, 1.45A.
  • Output
    • Sixteen (16) fuse protected outputs.
    • 12VDC or 24VDC.
    • 4A total continuous supply current (0.25A per device, 3.5A max.).
    • Outputs are rated @ 3.5A.
    • Filtered and electronically regulated outputs.
  • Battery Charging
    • Capacity: 12AH /7VDC (2 within enclosure); 40 AH / 65 AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 25 BTU/Hr.
        • 24VDC: 49 BTU/Hr.
    • System AC input VA requirement: 166.75VA.
  • Features
    • AC input and DC output LED indicators.
    • Power ON/OFF switch.
    • Unit maintains camera synchronization.
    • Ease of installation saves time and eliminates costly labor.

Agency Listings


CE Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 7.9 Lbs. (3.58 kg).
  • Shipping Weigtht: 8.8 Lbs. (3.99 kg).
