ALTV164

AC CCTV Power Supply, 4 Fuse protected outputs, 16VAC @ 6A or 18VAC @ 5A, 115VAC, BC100 Enclosure

Altronix ALTV164 CCTV Power Supply is designed to power CCTV cameras and accessories. It provides 16VAC @ 6A or 18VAC @ 5A supply current, distributed via four (4) fuse protected outputs.

  • Input
    • Input 115VAC, 50/60 Hz, 0.9A.
  • Output
    • 16VAC @ 6A or 18VAC @ 5A supply current.
    • Four (4) fuse protected outputs.
    • Surge protection.
  • Fuse Ratings
    • Output fuses are rated @ 3.5A/250VAC
    • Main fuse is rated @ 10A/250VAC
  • Visual Indicators
    • AC power LED indicator.
  • Features
    • Power ON/OFF switch.
    • Spare fuse included.
    • Unit maintains camera synchronization.
    • Ease of installation saves time and eliminates costly labor.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 49.1 BTU/Hr.

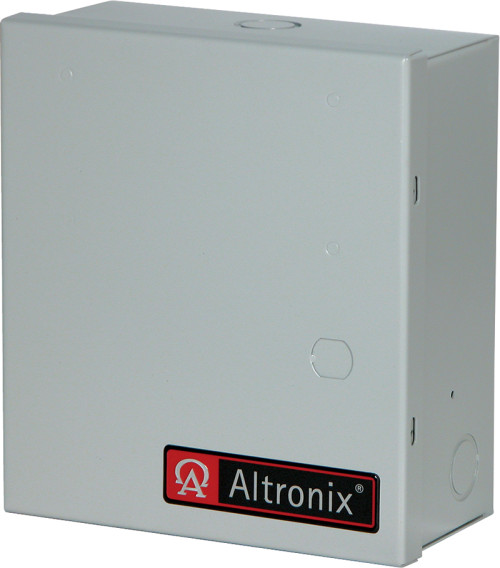

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.4 Lbs. (2.9 kg).
  • Shipping Weight: 6.9 Lbs. (3.13 kg).
