ALTV2416300ULM

CCTV Power Supply, 16 Fused Outputs, 24VAC/28VAC @ 12.5A, 115VAC, BC100M Enclosure

This product replaces ALTV2416300M

ALTV2416300ULM provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

  • Input
    • 115VAC, 50/60Hz, 2.7A.
  • Output
    • Sixteen (16) fuse protected outputs.
    • 24VAC @ 12.5A (300VA) supply current (0.781A per device, 3.5A max.) or 28VAC @ 10A (280VA) supply current (0.625A per device, 3.5A max.).
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VAC: 154 BTU/Hr.
        • 28VAC: 143 BTU/Hr.
    • System AC input VA requirement: 310.5VA.
  • Features
    • Secondary fuse rated @ 10A/250V.
    • AC power LED.
    • Power ON/OFF switch.
    • Spare fuses provided. (all models w/primary and/or secondary fuses).
UL Listed For:
Commercial CCTV Equipment (UL2044)
Download File
cUL Listed For:
CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment
Download File

CE Compliant

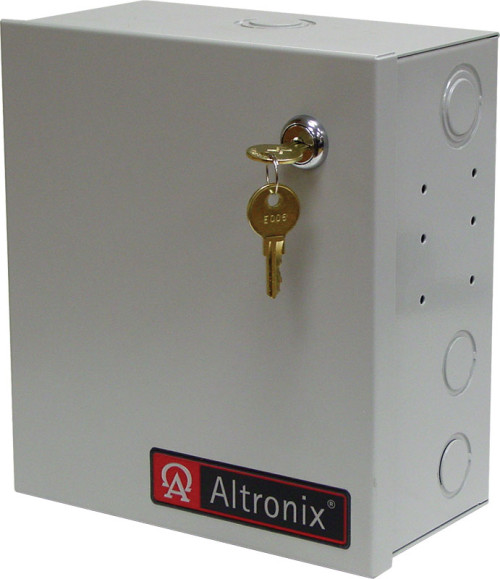

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.875"D (190.5 mm W x 216 mm H x 98.4 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 8.2 Lbs. (3.719 kg).
  • Shipping Weight: 9.2 Lbs. (4.173 kg).
