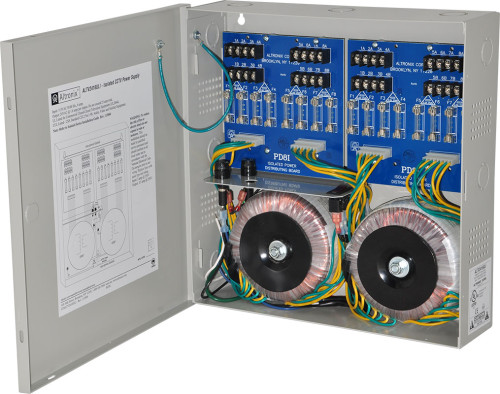

ALTV2416ULI

CCTV Power Supply, 16 Isolated Fused Outputs, 24VAC @ 25A, 115VAC, BC300 Enclosure

This product replaces ALTV2416I

ALTV2416ULI Isolated CCTV Power Supply provides 24VAC distributed via sixteen (16) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

  • Input
    • 115VAC, 50/60Hz, 6A.
  • Output
    • Sixteen (16) fuse protected outputs.
    • 24VAC @ 25A (600VA) supply current.
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Features
    • Illuminated master power disconnect circuit breaker with manual reset.
    • Unit maintains camera synchronization.
    • Spare fuses provided.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 304 BTU/Hr.
    • System AC input VA requirement: 690VA.
UL Listed For:
Commercial CCTV Equipment (UL2044)
Download File
cUL Listed For:
CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment
Download File

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 23.3 Lbs. (10.568 kg).
  • Shipping Weight: 24.3 Lbs. (11.022 kg).
