ALTV2432600

CCTV Power Supply, 32 Fused Outputs, 24/28VAC @ 28A, 115VAC, BC300 Enclosure

ALTV2432600 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Thirty-Two (32) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

  • Input
    • 115VAC, 50/60Hz, 2.7A.
  • Output
    • Thirty-Two (32) fuse protected outputs.
    • 24VAC @ 28A (700VA) supply current (0.875A per device, 3.5A max.) or 28VAC @ 25A (700VA) supply current (0.781A per device, 3.5A max.).
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VAC: 344 BTU/Hr.
        • 28VAC: 358 BTU/Hr.
    • System AC input VA requirement: 310.5VA.
  • Features
    • Secondary fuse rated @ 10A/250V.
    • AC power LED.
    • Power ON/OFF switch.
    • Spare fuses provided. (all models w/primary and/or secondary fuses).

CE Compliant

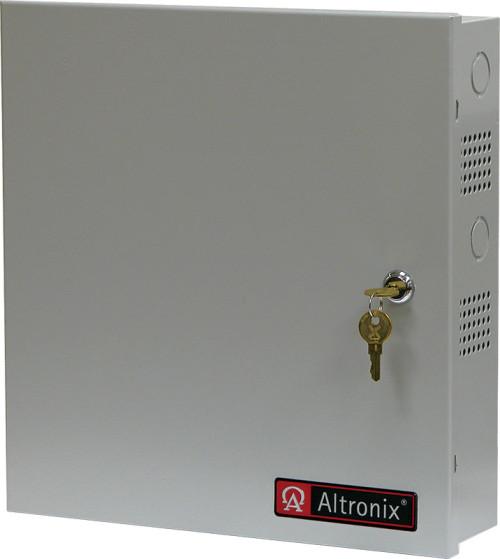

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 24.6 Lbs. (11.158 kg).
  • Shipping Weight: 25.6 Lbs. (11.611 kg).
