ALTV248300220

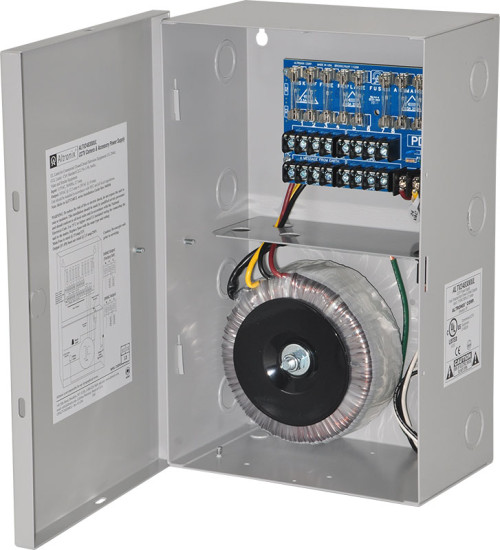

CCTV Power Supply, 8 Fused Outputs, 24/28VAC @ 14A, 220VAC, BC200 Enclosure

ALTV248300220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Specifications

  • Input
    • 220VAC, 50/60Hz, 1.35A.
  • Output
    • Eight (8) fuse protected outputs.
    • 24VAC @ 14A (350VA) supply current (1.75A per device, 3.5A max.) or 28VAC @ 12.5A (350VA) supply current (1.563A per device, 3.5A max.).
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VAC: 154 BTU/Hr.
        • 28VAC: 143 BTU/Hr.
    • System AC input VA requirement: 297VA.
  • Features
    • Secondary fuse rated @ 15A/32V.
    • AC power LED.
    • Power ON/OFF switch.
    • Spare fuses provided. (all models w/primary and/or secondary fuses).

Agency Listings


CE Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 11.4 Lbs. (5.17 kg).
  • Shipping Weigtht: 12.4 Lbs. (5.62 kg).
