AT4

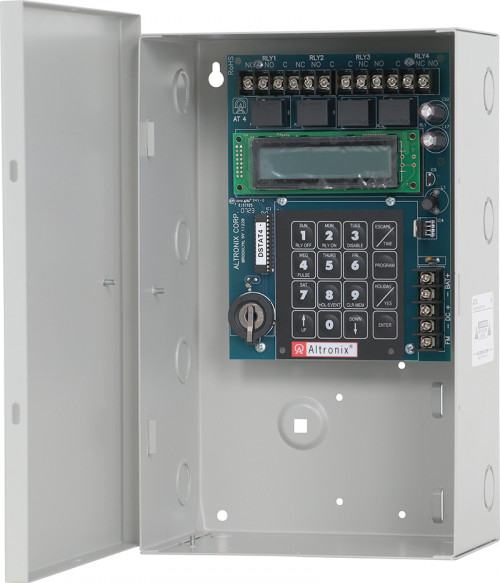

Timer, 365 Day 24 Hour Annual Event, 4 Channel, Alphanumeric LCD Display, Battery Charger, BC200 Enclosure

Altronix AT4 is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications. Such applications include: Home and Building Automation, Security, Access Control, Lighting Control, Etc.

Specifications

  • Input
    • 12 to 24 VAC or VDC operation.
  • Relay
    • Standby current: 20mA with relays off combined with 40mA for each relay on.
    • Four (4) Form "C" relay contacts are rated 10A @ 120VAC/28VDC.
    • Each relay operates independently.
  • Events/Programming
    • Momentary and/or Latching Events.
    • 254 individually programmed daily/weekly events.
    • Block programming capacity can accommodate a total of 1778 events per week.
    • 254 programmable Holiday dates.
  • Features
    • EE Prom memory protects against loss of programming due to power failure.
    • Clock synchronization 60Hz (AC operation).
    • Accurate crystal controlled clock (DC operation).
    • "First man in" option.
    • Standard or Daylight Savings Time settings.
    • Automatic compensation for leap year.
  • Battery Charging
    • Built-in charger for 12VDC sealed lead acid or gel type batteries (Max. charge current 300mA).
    • Lithium battery backup maintains clock. Order Altronix part # LB2032.
    • (Batteries are sold separately).
  • Display
    • Alphanumeric LCD display simplifies programming.
  • Temperature
    • Operating: -20ºC to 49ºC (-4ºF to 120ºF).
    • Storage: -25ºC to 70ºC (-13ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/4AH Batteries.
  • Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 6.5 Lbs. (2.95 kg).
  • Shipping Weigtht: 7.3 Lbs. (3.31 kg).
