eFlow4N8DV

Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC @ 4A, Aux Output, FAI, LinQ2 Ready, 115VAC, BC300 Enclosure

Altronix eFlow4N8DV is a power supply/chargers converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into eight (8) PTC protected outputs. Power supply/charger is selectable for 12VDC or 24VDC with a total of 4A max. They also offer a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

  • Input
    • 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
    • Input fuse: 5A/250V.
  • Output
    • Eight (8) PTC protected outputs (auto-resettable).
    • 12VDC or 24VDC @ 4.0A supply current.
    • Outputs are rated @ 2A.
    • Auxiliary output rated @ 1A (unswitched).
    • Overvoltage protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current: 1.54A.
    • Automatic switch over to stand-by battery when AC fails.
    • Transfer to stand-by battery power is instantaneous with no interruption.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
    • Battery fail and presence supervision (form "C" contacts).
    • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Fire Alarm Disconnect
    • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 25 BTU/Hr.
        • 24VDC: 49 BTU/Hr.
    • System AC input VA requirement: 462VA.
  • Visual Indicators
    • Green AC Power LED indicates 220VAC present.
    • AC input and DC output LED indicators.
  • Additional Features
    • Short circuit and overload protection.

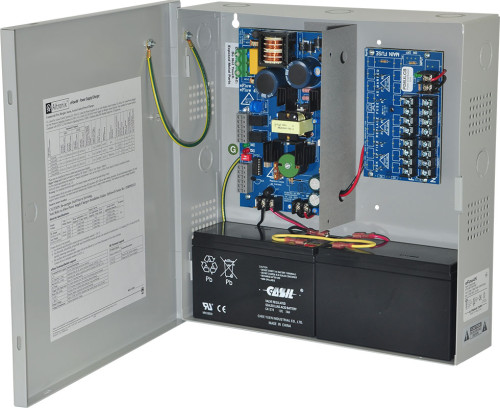

    • Unit is complete with power supply, enclosure, battery leads, and cam lock.

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.7 Lbs. (3.04 kg).
  • Shipping Weight: 7.6 Lbs. (3.45 kg).
Print
*Batteries sold separately
