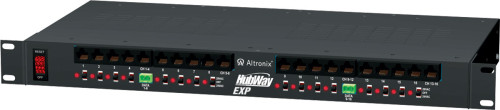

HubWayEXP

UTP Power Injector Hub, 16 Channel, Video up to 5000', Integrated 24/28VAC Power Supply, AGC, 115/220VAC, 1U

Altronix HubWayEXP UTP Power Injector supplies power combined with pass-through video and data for up to 16 cameras from Altronix HubWay Active UTP Transceiver Hubs. Unit allows for video transmission of up to 16 cameras over four CAT-5 or higher structured cables from HubWay Active Transceiver Hubs. HubWayEXP units are designed for installation at the IDF (Intermediate Distribution Frame) or MDF (Main Distribution Frame).

Specifications

  • Input
    • 115VAC 60Hz, 2.5A or 230VAC 50Hz, 1.5A.
  • Outputs
    • PTC protected isolated outputs rated 1A per channel.
    • Voltage: Individually selectable 24VAC or 28VAC power outputs with OFF position.
    • Current: Up to 1A max. per channel.
    • Other: Surge suppression.
  • Video
    • Sixteen (16) channel of video over twisted pair up to a distance of 1,500m (5000 ft.) per channel.
    • Sixteen (16) 75 Ohm video outputs.
    • Automatic picture and gain control.
  • Data
    • RS422/RS485 data inputs.
  • Indicators (LED)
    • Video: Sixteen (16) LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 24VAC: 123 BTU/Hr.
        • 28VAC: 143 BTU/Hr.

Agency Listings

UL Listed For:
Commercial CCTV Equipment (UL2044)
cUL Listed For:
CSA Standard C22.2 No.1-04, Audio, Video and Similar Equipment

CE Compliant

Accessories

Name Description
HubWayEX16 UTP Active Transceiver Hub, 16 Channel via 4 Grouped Ports, Video up to 5000', AGC, 115/220VAC, 1U
HubWayEX16S UTP Active Transceiver Hub, 16 Channel, Video up to 5000', AGC, 115/220VAC, 1U
HubWayEX32 UTP Active Transceiver Hub, 32 Channel via 8 Grouped Ports, Video up to 5000', AGC, 115/220VAC, 1U

Dimensions & Weight

Enclosure:
  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
  • Product Weigtht: 19.8 Lbs. (8.98 kg).
  • Shipping Weigtht: 22.15 Lbs. (10.05 kg).
