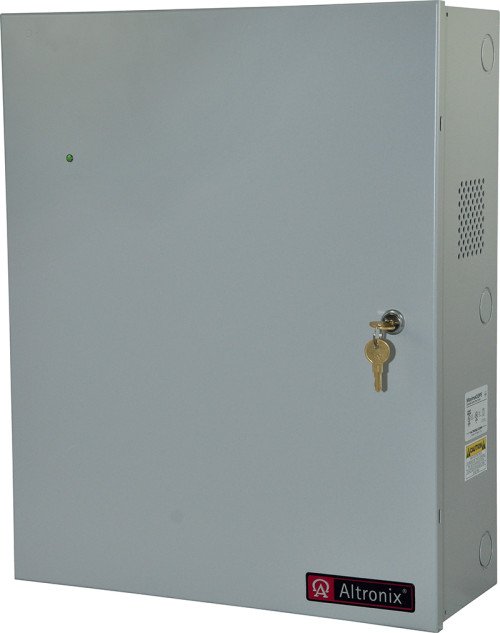

MaxFit5FE

Single Power Supply Expandable Power Systems, 12VDC @ 10A. BC750 Enclosure

Altronix MaxFit5FE Single Power Supply Expandable Power Systems provides system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Unit provides 12VDC, via one (1) single output power supply/charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.

Specifications

  • Input
    • Voltage: 120VAC 60Hz, 3.5A.
    • Fusing: 5A/250V.
  • Output
    • Voltage: 12VDC.
    • Current: 10A maximum supply current.
    • Aux. power-limited output rated @ 1A (unswitched).
    • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Fire Alarm Disconnect
    • Supervised: Latching or non-latching.
    • EOL: 10K Resistor.
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators (LED)
    • Input: 120VAC is present.
    • DC Output: Powered.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 61 BTU/Hr.

Accessories

Name Description
LINQ2 Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).
Weights (approximate):
  • Product Weigtht: 20.3 Lbs. (9.2 kg).
  • Shipping Weigtht: 25.7 Lbs. (11.6 kg).
