Maximal3F

Access Power Controller w/ Power Supply/Charger, 16 Fused Relay Outputs, 12/24VDC @ 6A, FAI, LinQ2 Ready, 115VAC, BC800 Enclosure

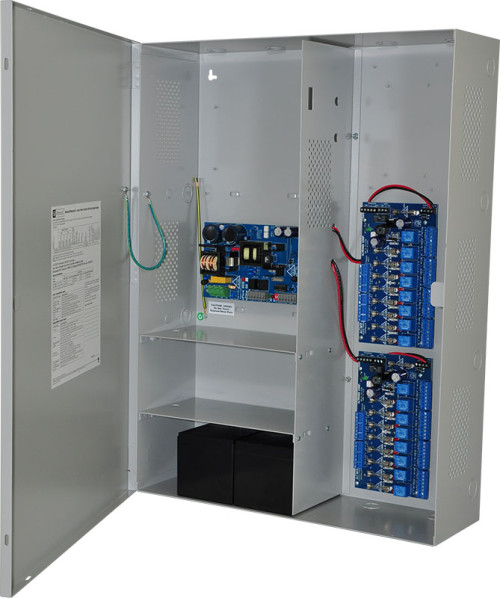

Maximal3F Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC fuse protected outputs. These Fail- Safe/Fail-Secure power outputs may be converted to dry form "C" contacts. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs. All interconnecting equipment must be UL Listed.

Specifications

  • Input
    • 120VAC 60Hz, 3.5A input.
      • Power supply input options:
        • a) Two (2) common power input for either ACM8 and lock power (factory installed).
        • b) Two (2) isolated power inputs (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total.
    • Sixteen (16) Access Control System trigger inputs.
      • Input options:
        • a) Sixteen (16) normally open (NO) dry trigger inputs.
        • b) Sixteen (16) open collector inputs.
        • c) Any combination of the above.
  • Output
    • 12VDC or 24VDC outputs.
      • Maximum output current:
        • 12VDC @ 4.6A or 24VDC @ 5.2A.
    • Sixteen (16) independently controlled outputs.
      • Output options:
        • a) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs.
        • b) Sixteen (16) form "C" 5A rated relay outputs.
        • c) Any combination of the above.
    • Sixteen (16) auxiliary power outputs (unswitched) (outputs are rated 2.5A).
    • Filtered and electronically regulated outputs (built-in power supply).
    • Thermal and short circuit protection with auto reset.
  • Fuse Ratings
    • Power Supply input fuse rated @ 5A/250V.
    • ACM8 boards main fuse is rated at 10A Fused outputs are rated @ 2.5A each.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
    • Battery fail and presence supervision (form "C" contacts).
    • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Features
    • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs.
      • Fire Alarm disconnect input options:
        • a) Normally open (NO) or normally closed (NC) dry contact input.
        • b) Polarity reversal input from FACP signaling circuit.
    • Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).
  • Battery Charging
    • Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Visual Indicators
    • Red LEDs indicate outputs are triggered (relays energized).
    • Green LED indicates FACP disconnect is triggered.
    • AC input and DC output LED indicators.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 28 BTU/Hr.
        • 24VDC: 64 BTU/Hr.
    • System AC input VA requirement: 420VA.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment
CAN/ULC - s319-05, Electronic Access Control Systems.

CSFM - California State Fire Marshal Approved

CE Compliant

Accessories

Name Description
LINQ2 Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/12AH Batteries.
  • Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 31.8 Lbs. (14.4 kg).
  • Shipping Weigtht: 38.8 Lbs. (17.6 kg).
