Maximal55FEV

Power Supply/Chargers, Expandable, Dual 12VDC outputs @ 9.5A each, 220VAC, FAI, LinQ2 Ready, BC800 Enclosure

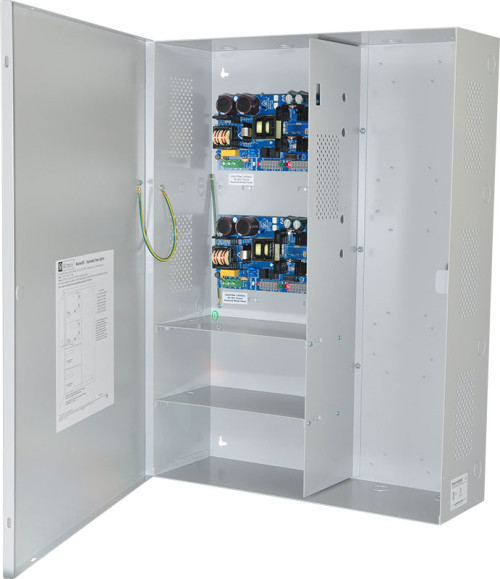

Maximal55FEV Expandable Power System provides system designers and installers with optimum power choices and the highest levels of versatility. It provides 12VDC via two (2) single output power supply/chargers. System includes AC fail, low battery and battery presence monitoring. Enclosure facilitates up to four (4) 12VDC/12AH batteries. All interconnecting equipment must be UL Listed.

Specifications

  • Input
    • 220VAC (working range 198VAC - 256VAC), 50/60Hz, 4.2A input.
  • Output
    • 12VDC outputs.
      • Maximum output current Options:
        • A) 12VDC @ 10A plus 12VDC @ 10A.
    • Aux. output rated @ 1A (unswitched).
    • Overvoltage protection.
  • Fuse Ratings
    • Power Supply input fuse rated @ 5A/250V.
  • Fire Alarm Disconnect
    • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
    • Battery fail & presence supervision (form "C" contacts).
    • Low power shutdown. Prevents deep battery discharge.
  • Battery Charging
    • Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Visual Indicators
    • Green AC Power LED indicates 220VAC present.
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70ºC ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 123 BTU/Hr.
    • System AC input VA requirement: 924VA

Agency Listings


CE Compliant

Accessories

Name Description
LINQ2 Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 43.5 Lbs. (19.73 kg).
  • Shipping Weigtht: 47.5 Lbs. (21.55 kg).
