Maximal75EV

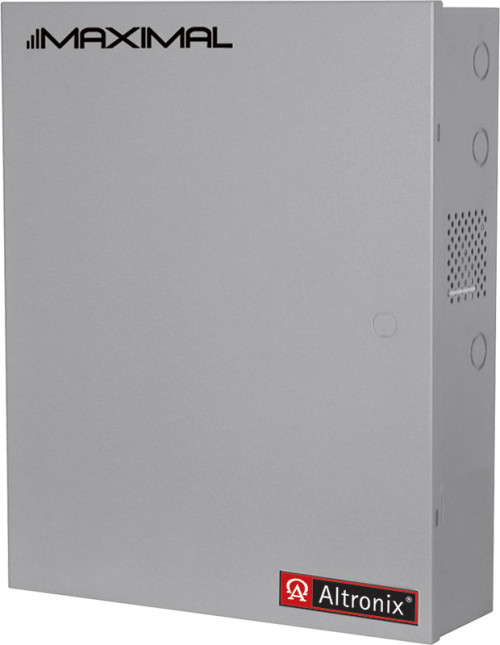

Power Supply/Charger, Expandable, 1 P/S 24VDC @ 10A & 1 P/S 12VDC @ 10A, 220VAC, BC800 Enclosure

Maximal75EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 12VDC and 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.

Specifications

  • Input
    • 220VAC (working range 198VAC - 256VAC), 50/60Hz, 5A input.
  • Output
    • 12VDC and 24VDC output.
      • Maximum output current Options:
        • A) 24VDC @ 10A plus 12VDC @ 10A.
    • Filtered and electronically regulated outputs (built-in power supply).
    • Thermal and short circuit protection with auto reset.
  • Fuse Ratings
    • Power Supply input fuse ratings
    • AL1012XB220: 5A/250V
    • AL1024XB2V: 5A/250V
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery and battery presence supervision (form "C" contact).
  • Battery Charging
    • Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 184 BTU/Hr.
    • System AC input VA requirement: 1100VA.

Agency Listings


CE Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to three (3) 12VDC/12AH Batteries.
  • Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 42.3 Lbs. (19.17 kg).
  • Shipping Weigtht: 46.3 Lbs. (21 kg).
