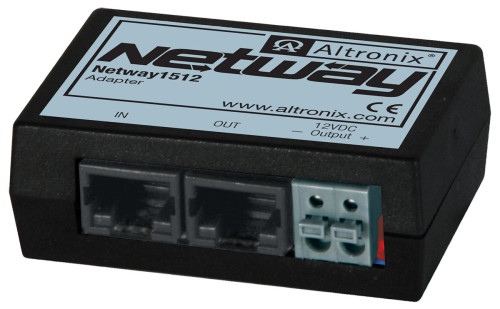

NetWay1512

PoE Adapter, Converts PoE into 12VDC @ 15W

Altronix NetWay1512 adapter provides PoE compatibility for conventional IP surveillance cameras with NetWay midspans. It is compatible with PoE midspans and switches that pass power via the spare pairs of the network cable (Mode “B”).

Specifications

  • Functions
    • 15W adapter for conventional IP cameras.
  • Indicators (LED)
    • Red LED: Power ON.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120.2° F).
    • Storage: - 40° C to 70° C ( - 40° to 158° F).
    • Relative Humidity 85% +/- 5%.
  • Operating Altitude
    • - 304.8 to 3,048m ( - 1000 to 10,000 ft.).

Agency Listings

UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

Dimensions & Weight

Enclosure:
  • Modular plastic case.
  • Dimensions 2.38"W x 1"H x 1.62"D (60 mm W x 25 mm H x 41 mm D).
Weights (approximate):
  • Product Weigtht: 0.12 Lbs. (0.05 kg).
  • Shipping Weigtht: 0.15 Lbs. (0.07 kg).
