NetWay16G

Network Managed PoE Midspan, 16 Port, 10/100/1000, 30W per port (480W total power), Battery Charging, 115/230VAC Input

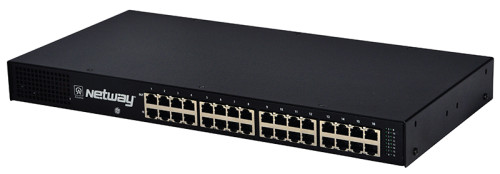

Altronix NetWay16G is a 16-port networked Managed Midspan in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W power per port), and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control, and report power and diagnostics from anywhere.

Specifications

  • Input
    • 115VAC, 60Hz, 4.5A or 230VAC, 50/60Hz, 3A.
  • Power
    • Unit supplies PoE output voltage (55V) and up to 30W max. full power per port.
    • Total power: NetWay16G - 480W
    • IEEE 802.3af and IEEE 802.3at compliant (PoE/PoE+).
    • Short circuit protection.
  • Ethernet:
    • Sixteen (16) ports for cameras/edge devices over ethernet.
    • Wire type: 4-pair CAT5e and higher.
    • Speed: 10/100/1000 Mbps.
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/edge devices.
  • Visual Indicators
    • Yellow and Green LED (by RJ45 jack): IP Link status, 10/100/1000 Base-T/active.
    • Green LED: Port status.
    • Red LED: Power.
  • Battery Charging
    • Built-in battery charger (optional rack mount battery enclosure - RE2).
    • Automatic switchover to stand-by battery when AC fails.
    • (Batteries are sold separately).
  • LINQ Technology
    • SSL (Secure Socket Layer) security encryption.
    • User level security.
    • Built-in IP management allows for remote camera reset and monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time diagnostics.
    • Event log tracks history.
  • Temperature
    • Operating: - 20° C to 40° C ( - 4° F to 104° F).
    • Storage: - 20° to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 245 BTU/Hr.
    • Operating Altitude: Up to 2,000m.

Agency Listings

UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

Accessories

Name Description
NetWayXT Ethernet Extender, 1 Port, 10/100, Passes PoE, Extends Data additional 100m
NetWayXTX Ethernet Extender, 1 Port, 10/100, Passes PoE/PoE+, Extends Data additional 100m
RE2 Rack Mount Battery Enclosure, 2U

Dimensions & Weight

Enclosure:
  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
  • Product Weigtht: 4.05 Lbs. (1.84 kg).
  • Shipping Weigtht: 5.1 Lbs. (2.31 kg).
