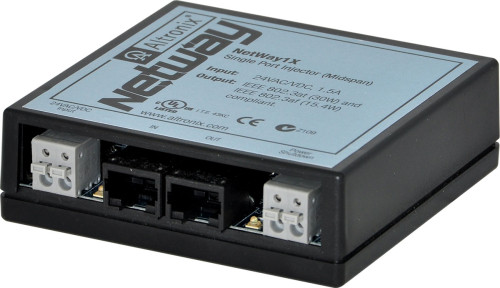

NetWay1X
Midspan Injector, Single Port, 10/100, PoE/PoE+, 30W, 24VAC/VDC, Shutdown Trigger
Altronix NetWay1X single port midspan PoE/PoE+ compliant power injector provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay1X. A NetWayXTX repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1X is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
Specifications
Input
- 24VAC @ 1.5A or 24VDC @ 1.5A.
Data
- One (1) PoE/PoE+ port provides power and passes data over ethernet (CAT5) cable up to 100m.
- Data rate: 10/100 Base-T compliant.
Output Power
- Port provides up to 30W max.
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- Short circuit protection.
Functions
- Port status LED.
- PoE manual shutdown (For UL 60950-1 applications only).
- Auto detection and protection of legacy non-PoE cameras/devices.
Temperature
Operating:
- 48VDC, 30W: 0° C to 45° C (32° F to 113° F).
- 24VAC, 30W: 0° C to 37° C (32° F to 98.6° F).
Storage:
- - 20° to 70° C (-4° to 158° F).
- Relative Humidity 85% +/- 5%.
Operating Altitude
- - 304.8 to 3048m ( - 1000 to 10,000 ft.).
Agency Listings
UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment
CE Compliant
Accessories
| Name | Description |
|---|---|
| NetWay1512 | PoE Adapter, Converts PoE into 12VDC @ 15W |
| NetWay3012 | PoE Adapter, Converts PoE+ into 12VDC @ 30W |
| NetWayXTX | Ethernet Extender, 1 Port, 10/100, Passes PoE/PoE+, Extends Data additional 100m |
Dimensions & Weight
Enclosure:
- Modular plastic case.
- Dimensions 3.48"W x 1"H x 3.8"D (88 mm W x 25 mm H x 97 mm D).
Weights (approximate):
- Product Weigtht: 0.25 Lbs. (0.11 kg).
- Shipping Weigtht: 0.3 Lbs. (0.14 kg).
