NetWay4E1WP

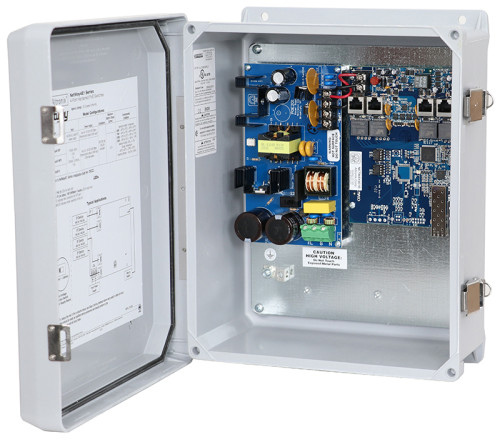

4-port Hardened PoE Switch with Power Supply/Charger; NEMA4/4X, IP66 rated Outdoor enclosure

Altronix NetWay4E1WP Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
    • Fusing: 5A/250V.
  • Power Output
      • Maximum Power:
        • Four (4) 10/100/1000 Mbps.
        • PoE/PoE+ (up to 30W) ports.
        • IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
        • 120W total power.
        • Integral surge protection.
  • Fiber Port
    • One (1) Gigabit SFP (Fiber) port.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • Temperature
      • Operating:
        • 60W: - 40° C to 75° C ( - 40° F to 167° F).
        • 75W: - 40° C to 70° C ( - 40° F to 158° F).
        • 100W: - 40° C to 55° C ( - 40° F to 131° F).
        • 120W: - 40° C to 45° C ( - 40° F to 113° F).
    • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

Agency Listings


CE Compliant

Accessories

Name Description
P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
PMK1 Pole Mount Kit, For Outdoor Enclosures
WG1 NEMA Rated Wire Gland Inlets
NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.

Similar Products

Name Description
NetWay4E1WPX 4-port Hardened PoE Switch with Power Supply/Charger; NEMA4/4X, IP66 rated Outdoor enclosure; Accommodates up to four (4) 12VDC/4AH batteries
NetWay4E1WPN 4-port Hardened PoE Switch; NEMA4/4X rated Outdoor enclosure
NetWay4E1PL 4-port Hardened PoE+ Switch with Power Supply/Charger; Backplane version
NetWay4E1X 4-port Hardened PoE Switch with Power Supply/Charger; NEMA1 rated Indoor enclosure
NetWay4E1B 4-port PoE+ Hardened Switch Board

Dimensions & Weight

Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weigtht: 10.32 Lbs. (4.68 kg).
  • Shipping Weigtht: 11.7 Lbs. (5.3 kg).
