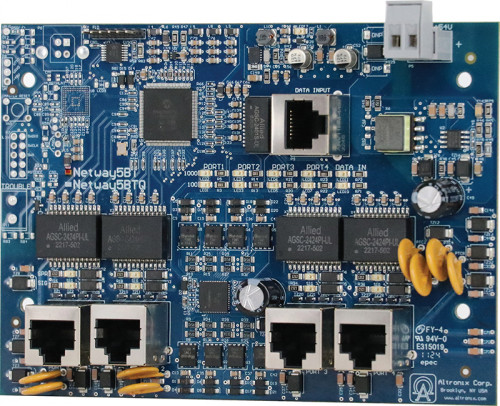

NetWay5BT

5-port Hardened 802.3bt 4PPoE Switch Board

Altronix NetWay5BT is a space-saving 5-port hardened 802.3bt 4PPoE Switch board that mounts easily inside of Altronix enclosures, improving installation efficiency. It is an ideal solution in all Maximal and Trove series products, a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each, with 240W total power – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance.

Specifications

  • Input Power
    • 48-56V UL Listed ITE power supply
  • Power Output
      • Maximum Power:
        • Four (4) 10/100/1000 Mbps PoE/PoE+ (rated up to 90W) ports 240W total power
        • Integral surge protection
      • Uplink Port:
        • Single data port
  • Ethernet Ports
    • Five (5) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or higher structured cable
    • Distance: up to 100m
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100Base-T/active LEDs for each port
  • Temperature
      • Operating Temperature:
        • 240W: – 30ºC to 55ºC (– 22ºF to 131ºF)
        • 180W: – 30ºC to 65ºC (– 22ºF to 149ºF)
        • 150W: – 30ºC to 75ºC (– 22ºF to 167ºF)
    • Storage Temperature: - 40ºC to 85ºC ( - 40º to 185ºF).
    • Relative Humidity: 85% +/- 5%.
  • Operating Altitude
    • - 304.8 to 2,000m.
  • Mounting hardware included

    Agency Listings


    CE Compliant

    Accessories

    Name Description
    BR1 Add-On Mounting Bracket

    Similar Products

    Name Description
    NetWay5BTWP 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.
    NetWay5BTWPX 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure. Accommodates up to four (4) 12VDC/4AH batteries.
    NetWay5BTWPN 5-port Hardened 802.3bt 4PPoE Switch - NEMA4/4X rated Outdoor enclosure
    NetWay5BTPL 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - Backplane version
    NetWay5BTWPX 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure. Accommodates up to four (4) 12VDC/4AH batteries.
    NetWay5BTWP 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.
    NetWay5BTWPN 5-port Hardened 802.3bt 4PPoE Switch - NEMA4/4X rated Outdoor enclosure
    NetWay5BTPL 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - Backplane version
    NetWay5BTX 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA1 rated Indoor enclosure.

    Dimensions & Weight

    Dimensions (approximate):
    • 4"W x 5.625"L x 0.75"H (101.6 mm W x 142.9 mm L x 19 mm H).
    Weights (approximate):
    • Product Weigtht: 0.25 Lbs. (0.11 kg).
    • Shipping Weigtht: 0.75 Lbs. (0.34 kg).
