NetWay5BTQWPN

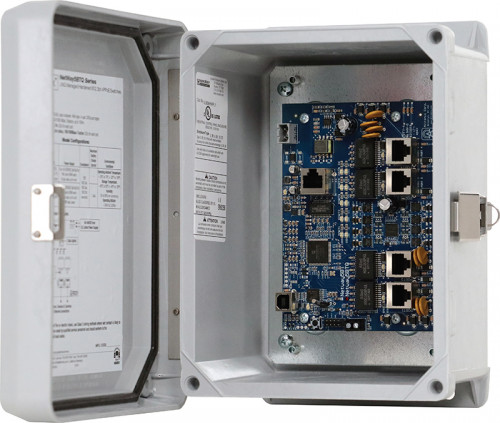

5-port Managed Hardened 802.3bt 4PPoE Switch - NEMA4/4X rated Outdoor enclosure
Altronix NetWay5BTQWPN hardened 4PPoE switch provides a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each. It can power IP devices, such as PoE access controllers and cameras. Other applications may include integrating network door access systems with video surveillance. Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics.
Specifications
Input Power
- 48-56V UL Listed ITE power supply
Power Output
Maximum Power:
- Four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each
- Integral surge protection
Uplink Port:
- Single data port
Ethernet Ports
- Five (5) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Distance: up to 100m.
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
LINQ Technology
- Remote network power management allows for device reset and monitoring
- Provides local and/or remote access to critical information via LAN/WAN
- Email and Windows Dashboard Alert notifications report real-time diagnostics
- Event log tracks history
VLAN
- Multiple management VLAN assignment
- 802.1Q Tagged VLAN
- Up to 10 VLAN groups. ID Range 2-4095
Indicators (LED)
- Individual PoE On LEDs for each port
- Individual IP Link status, 10/100Base-T/active LEDs for each port
Temperature
Operating Temperature:
- 240W: – 30ºC to 55ºC (– 22ºF to 131ºF)
- 180W: – 30ºC to 65ºC (– 22ºF to 149ºF)
- 150W: – 30ºC to 75ºC (– 22ºF to 167ºF)
- Storage Temperature: - 40ºC to 85ºC (- 40º to 185ºF)
- Relative Humidity: 85% +/- 5%
Operating Altitude
- - 304.8 to 2,000m.
Agency Listings
CE Compliant
Accessories
| Name | Description |
|---|---|
| PMK1 | Pole Mount Kit, For Outdoor Enclosures |
Similar Products
| Name | Description |
|---|---|
| NetWay5BTQ | 5-port Managed Hardened 802.3bt 4PPoE Switch Board |
| NetWay5BTQWPX | 5-port Managed Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure. Accommodates up to four (4) 12VDC/4AH batteries |
| NetWay5BTQWP | 5-port Managed Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure |
| NetWay5BTQPL | 5-port Managed Hardened PoE Switch with Power Supply/Charger - Backplane version |
| NetWay5BTQX | 5-port Managed Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA1 rated Indoor enclosure |
Dimensions & Weight
Enclosure:
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Dimensions 7.32"W x 9.5"H x 4.92"D (185.9 mm W x 236.7 mm H x 125 mm D).
Weights (approximate):
- Product Weigtht: 2.2 Lbs. (1.01 kg).
- Shipping Weigtht: 3.2 Lbs. (1.45 kg).
