NetWay5PX

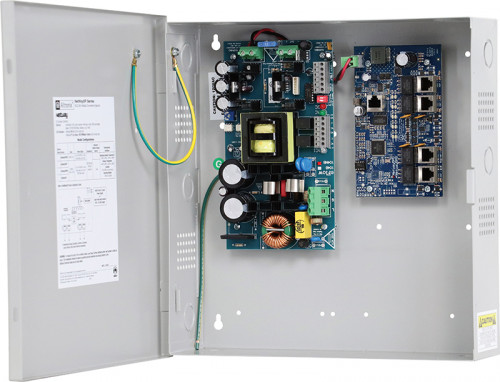

5-port Hardened PoE+ Switch with Power Supply/Charger - NEMA1 rated Indoor enclosure BC300

Altronix NetWay5PX powered hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance.

Specifications

  • Input
    • Voltage: 120VAC, 60Hz, 4.5A
    • Input Fuse: 6.3A/250V
  • Power Output
      • Maximum Power
        • Four (4) 10/100/1000 Mbps
        • PoE/PoE+ (up to 30W) ports or IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
        • 120W total power
        • Integral surge protection
      • Uplink Port
        • Single data port
  • Ethernet Ports
    • Five (5) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • LED Indicators
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
    • (Separate ventilated enclosure is required).
  • Temperature
    • Operating - 30ºC to 70ºC (- 22ºF to 158ºF).
    • Storage: - 40ºC to 85ºC (- 40ºF to 185ºF).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 123 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

Agency Listings


CE Compliant

Similar Products

Name Description
NetWay5P Unmanaged Network 5-Port Hardened PoE+ Switch Board
NetWay5PWP 5-port Hardened PoE+ Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure WP3
NetWay5PWPN 5-port Hardened PoE+ Switch - NEMA4/4X rated Outdoor enclosure WP4
NetWay4E1BTWP 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 6.65 Lbs. (3.02 kg).
  • Shipping Weigtht: 7.55 Lbs. (3.42 kg).
