NetWaySP8PL3

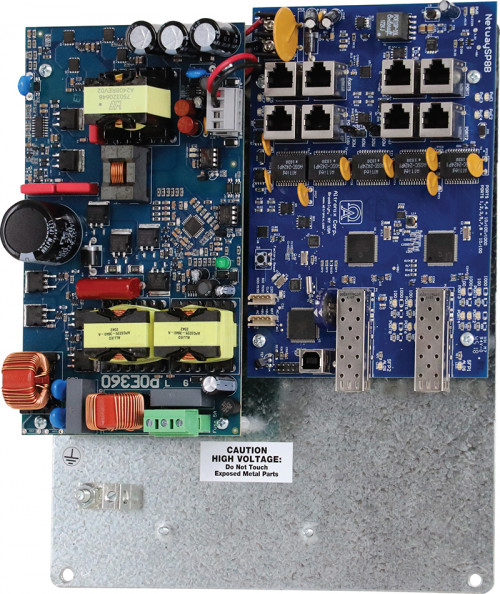

Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ switch and 320W Power Supply/Charger mounted on Backplane version
Altronix NetWaySP8PL3 supports up to 60W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) Ethernet ports. NetWaySP8PL3 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.
Specifications
Input
- Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A
- Input Fuse: 5A/250V
Power Output
Maximum Power:
- Eight (8) PoE+ (30W) ports or two (2) Hi-PoE (60W) ports
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant
- 360W total power
- Integral surge protection
SFP Ports:
- Two (2) Gigabit SFP ports
Ethernet Ports
- Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair CAT5e or higher structured cable
- Distance: up to 100m.
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
Battery Charging
- Type: 48VDC charging circuit charges sealed lead acid* or gel type* batteries (require separate ventilated enclosure)
- Failover: Upon AC loss, instantaneous
- (Batteries are sold separately)
Indicators (LED)
- Individual PoE On LEDs for each port
- Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
- ALOS LED indicates fiber connection for SFP port
- Heartbeat LED indicates proper operation of the unit
VLAN
- Multiple management VLAN assignment
- 802.1Q Tagged VLAN
- Up to 10 VLAN groups. ID Range 2-4095
LINQ Technology
- Remote network power management allows for camera/device reset and monitoring
- Provides local and/or remote access to critical information via LAN/WAN
- Email and Windows Dashboard Alert notifications report real-time diagnostics
- Event log tracks history
Temperature
Operating Temperature:
- 360W: – 40ºC to 45ºC (– 40ºF to 113ºF)
- 240W: – 30ºC to 55ºC (– 22ºF to 131ºF)
- 180W: – 30ºC to 65ºC (– 22ºF to 149ºF)
- 150W: – 30ºC to 75ºC (– 22ºF to 167ºF)
- Storage Temperature: - 30ºC to 85ºC (- 22º to 185ºF)
- Relative Humidity: 85% +/- 5%
- BTU/Hr.(approx.): 183 BTU/Hr.
Operating Altitude
- - 304.8 to 2,000m.
Agency Listings
CE Compliant
Accessories
| Name | Description |
|---|---|
| P1MM | Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver |
| P1SM10 | Small Form-Factor Pluggable (SFP) Single Mode Transceiver |
| P1AB2K | Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit |
| P1GCE | Small Form-Factor Pluggable (SFP) Copper Transceiver |
| NetWaySP1A | PoE Powered Ethernet to Fiber Media Converter/Repeater. |
Similar Products
| Name | Description |
|---|---|
| NetWaySP8WP3 | Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ switch and 320W Power Supply/Charger mounted in NEMA4/4X, IP66 rated Outdoor enclosure |
| NetWaySP8WPX3 | Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ switch and 320W Power Supply/Charger mounted in NEMA4/4X, IP66 rated Outdoor enclosure. Accommodates up to four (4) 12VDC/4AH batteries |
| NetWaySP8X3 | Dual Fiber Optic SFP 1G Link, 8-port Network Managed PoE+ switch and 320W Power Supply/Charger mounted in NEMA1 rated Indoor enclosure |
Dimensions & Weight
Dimensions (approximate):
- 8.875"W x 2.375"L x 10.75"H (225.4 mm W x 60.3 mm L x 273.1 mm H).
Weights (approximate):
- Product Weigtht: 2.8 Lbs. (1.27 kg).
- Shipping Weigtht: 4.2 Lbs. (1.9 kg).
