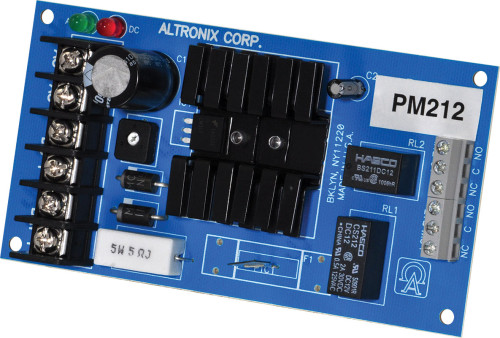

PM212

Linear Power Supply/Charger, Single Output, 12VDC @ 1A, 16VAC, Board

Altronix PM212 supervised linear power supply/charger converts a low voltage AC input to a filtered and regulated continuous power-limited output.

Specifications

  • Input
    • Transformer requirements:
    • - 16VAC/20VA for 12VDC output (Altronix Model # TP1620).
  • Output
    • 12VDC output.
    • 1A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails (zero voltage drop).
    • PTC battery protection.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 6 BTU/Hr.

Dimensions & Weight

Dimensions (approximate):
  • 2.75"W x 5.25"L x 1.5"H (69.85 mm W x 133.35 mm L x 38.1 mm H).
Weights (approximate):
  • Product Weigtht: 1.1 Lbs. (0.5 kg).
  • Shipping Weigtht: 1.3 Lbs. (0.59 kg).
