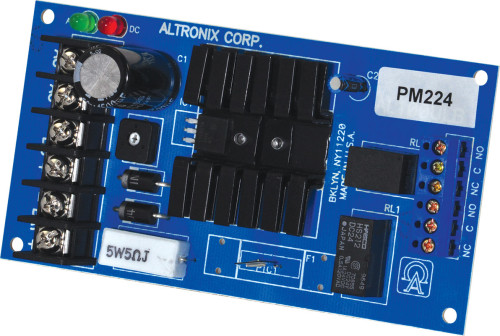

PM224

Linear Power Supply/Charger, Single Output, 24VDC @ .75A, 24VAC, Board

Altronix PM224 supervised linear power supply/charger converts a low voltage AC input to a filtered and regulated continuous power-limited output.

Specifications

  • Input
    • 24VAC/40VA
  • Output
    • 24VDC output
    • 750mA continuous supply current
    • Filtered and electronically regulated output
    • Thermal and short circuit protection with auto reset
  • Battery Charging
    • Battery leads included.
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switchover to stand-by battery when AC Fails.
    • PTC battery protection.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 9 BTU/Hr.

Dimensions & Weight

Dimensions (approximate):
  • 2.75"W x 5.25"L x 1.5"H (69.85 mm W x 133.35 mm L x 38.1 mm H).
Weights (approximate):
  • Product Weigtht: 0.2 Lbs. (0.09 kg).
  • Shipping Weigtht: 0.3 Lbs. (0.136 kg).
