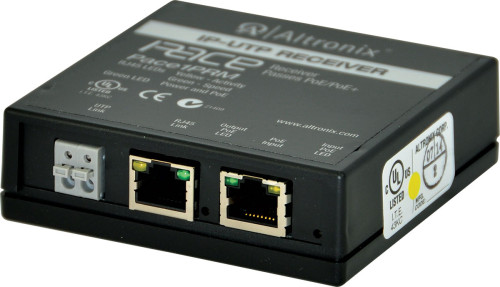

Pace1PRM

IP and PoE+ over Extended Distance CAT5e or UTP Receiver

Pace1PRM is a long range Ethernet receiver which transmits data at 100Mbps full duplex and power via a single twisted pair (UTP) or CAT5e or higher cable in a PoE(+) compliant format. Pace1PRM receiver is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM or Pace1ST transceiver which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable.

Specifications

  • Input
    • Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or a single twisted pair UTP.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation.
    • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace1PRM to Pace1PTM by PoE protocol.
    • Throughput is rated to pass 100Mbps of data.
  • UTP (Single Twisted Pair UTP)
    • Distance: up to 152m @ 100Mbps.
  • CAT5e or Higher
    • Distance: up to 500m @ 100Mbps.
  • LED Indicators
    • Green - PoE ON (by respective RJ45 jack).
    • RJ45 jack: Yellow and Green LED IP Link status, 10/100Base-T/active.
  • Environmental
    • Operating Temperature: - 4° F to 120.2° F ( - 20° C to +49° C).
    • Storage Temperature: - 22° to 158° F ( - 30° to +70° C).
    • Relative humidity: 20 to 85%, non-condensing.
    • Operating Altitude: - 304.8 to 2000m.
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.

Agency Listings

UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

C-TICK Compliant

Accessories

Name Description
eBridge200WPM EoC or Long Range Ethernet 2 Port Transceiver, Outdoor, Passes PoE/PoE+/Hi-PoE 60W from Receiver, Requires Compatible Receiver
eBridge200WPMH EoC or Long Range Ethernet 2 Port Transceiver, Outdoor, Passes PoE/PoE+/Hi-PoE 60W from Receiver, Requires Compatible Receiver, 3 wiring inlets with glands
Pace1PTM Long Range Ethernet Single Port Transceiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Receiver
Pace1ST Long Range Ethernet Single Port Small Transceiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Receiver

Dimensions & Weight

Enclosure:
  • Modular plastic case. VB6
  • Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Weights (approximate):
  • Product Weigtht: 0.25 Lbs. (0.11 kg).
  • Shipping Weigtht: 0.42 Lbs. (0.19 kg).
