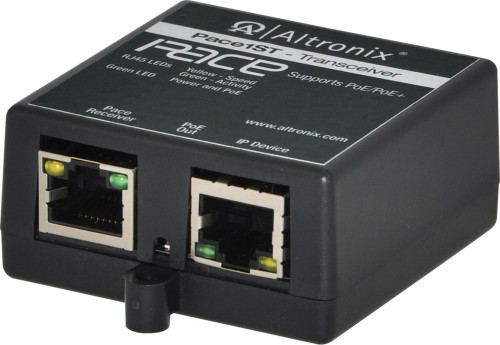

Pace1ST

Long Range Ethernet Single Port Small Transceiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Receiver

Pace1ST is a long range Ethernet transceiver designed for use with Pace1PRM, Pace4PRM, Pace8PRM and Pace16PRM receivers. They transmit data at 100Mbps full duplex and power via Cat5e or higher cable in a PoE(+) compliant format. The Pace1ST will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. The receiver passes the PoE(+) compliant power over the cable to the Pace1ST transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m.

Specifications

  • Input
    • PoE (15W) IEEE 802.3af compliant or PoE+ (30W) IEEE 802.3at compliant from Pace1PRM, Pace4PRM, Pace8PRM, or Pace16PRM.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or a single twisted pair UTP.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1ST.
    • Throughput is rated to pass 100Mbps of data.
  • CAT5e or Higher
    • Distance: up to 500m @ 100Mbps.
  • LED Indicators
    • Green - PoE ON (by respective RJ45 jack).
    • Yellow and Green LED IP Link status, 10/100Base-T/active.
  • Temperature
      • Operating Temperature:
        • For 15W: - 40° C to 75° C ( - 40° F to 167° F).
        • For 30W: - 40° C to 65° C ( - 40° F to 149° F).
    • Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
    • Relative humidity: 20 to 85%, non-condensing.
  • Operating Altitude
    • -304.8 to 2000m.
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.

Agency Listings

UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

Accessories

Name Description
Pace16PRM Long Range Ethernet 16 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver, 1U
Pace1PRM IP and PoE+ over Extended Distance CAT5e or UTP Receiver
Pace4PRM Long Range Ethernet 4 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver
Pace8PRM Long Range Ethernet 8 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver, 1U

Dimensions & Weight

Enclosure:
  • Modular plastic case.
  • Dimensions 2.27"W x 1.12"H x 2.64"D (57.66 mm W x 28.44 mm H x 67.18 mm D).
Weights (approximate):
  • Product Weigtht: 0.22 Lbs. (0.1 kg).
  • Shipping Weigtht: 0.4 Lbs. (0.18 kg).
