R1224DC16CBV

Power Supply, 16 PTC Class 2 Outputs, 12/24VDC @ 18A, 220VAC 2U

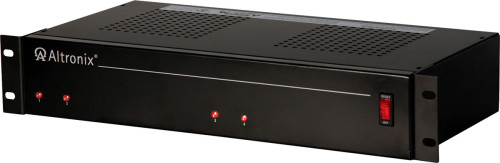

Altronix R1224DC16CBV Rack Mount Power Supply provides 12VDC or 24VDC distributed via sixteen (16) PTC protected auto-resettable outputs.

Specifications

  • Input
    • 220VAC 50/60 Hz, 1.8A @ 12VDC or 3.1A @ 24VDC.
  • Output
    • 12VDC @ 4.5A per channel of 4 outputs or 24VDC @ 4.5A per channel of 4 outputs. (2A max. per individual output).
    • 18A total supply current.
    • Sixteen (16) PTC protected outputs.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Temperature
    • Operating temperature: 0° C to 49° C ( 32° F to 120° F ).
    • Storage temperature: -20° C to 70° C ( -4° F to 158° F).
      • BTU/Hr. (approx.):
        • 12VDC - 130 BTU/Hr.
        • 24VDC - 260 BTU/Hr.
    • System AC input VA requirement: 720 VA.
  • Visual Indicators
    • Power LED indicators per group of 4 outputs.
  • Special Features
    • Illuminated power disconnect circuit breaker with manual reset.
    • Removable terminal blocks w/locking screw flange.
    • IEC 320 - 3-wire grounded line cord (detachable).
    • 3U rack mount chassis for use in standard EIA 19" rack.
    • Ease of installation saves time and eliminates costly labor.

Dimensions & Weight

Enclosure:
  • Modular 2U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
  • Allow 1/2U space on top and bottom of the unit for ventilation.
Weights (approximate):
  • Product Weigtht: 15.7 Lbs. (7.12 kg).
  • Shipping Weigtht: 17.3 Lbs. (7.85 kg).
