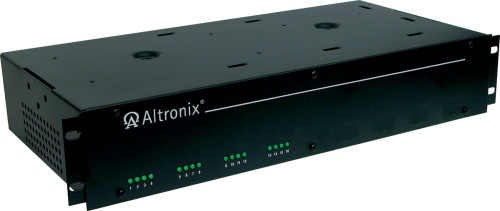

R2416600ULCB

CCTV Power Supply, 16 PTC Class 2 Outputs, 24/28VAC @ 25A, 115VAC, 2U

R2416600ULCB provides 24VAC or 28VAC distributed via sixteen (16) PTC protected Class 2 Rated power limited outputs for powering CCTV cameras, heaters and other video accessories.

Specifications

  • Input
    • 115VAC, 50/60Hz, 6A.
  • Output
    • Sixteen (16) PTC protected Class 2 Rated power limited outputs (auto-resettable).
    • 24VAC @ 25A (600VA) supply current (0.7812A per device, 2.5A max.) or 28VAC @ 20A (560VA) supply current (0.625A per device, 2.5A max.).
    • Outputs are rated @ 2.5A.
    • Surge suppression.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VDC: 307 BTU/Hr.
        • 28VDC: 287 BTU/Hr.
    • System AC input VA requirement: 690VA.
  • Features
    • Sixteen (16) power LEDs.
    • Illuminated master power disconnect circuit breaker with manual reset.
    • 3-wire grounded line cord.
    • Removable terminal blocks with locking screw flange.

Agency Listings

UL Listed For:
Commercial CCTV Equipment (UL2044)
cUL Listed For:
CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment

CE Compliant

Dimensions & Weight

Enclosure:
  • Modular 2U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
  • Allow 1/2U space on top and bottom of the unit for ventilation.
Weights (approximate):
  • Product Weigtht: 22.7 Lbs. (10.296 kg).
  • Shipping Weigtht: 23.7 Lbs. (10.75 kg).
