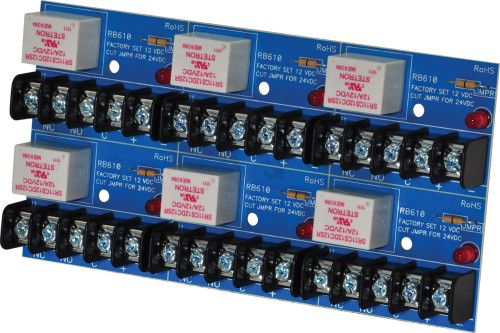

RB610

Relay Module, Breakaway, 6 - 12/24VDC, SPDT @ 10A - 120VAC/28VDC

Each cluster contains six (6) relay modules that can easily be separated if desired.

Specifications

  • Input Voltage
    • 12VDC or 24VDC selectable operation.
    • Current draw: 50mA.
  • Contact Rating
    • 10A/120VAC or 28VDC SPDT contacts.
  • Indicators (LED)
    • Trigger: Relay is triggered.
  • Temperature
    • Operating -25ºC to 55ºC ( -13ºF to 131ºF).
    • Storage -25ºC to 70ºC ( -13ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.

Dimensions & Weight

Dimensions (approximate):
  • 2"W x 2.75"L x 1"H (50.8 mm W x 69.85 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weigtht: 0.6 Lbs. (0.27 kg).
  • Shipping Weigtht: 0.7 Lbs. (0.32 kg).
