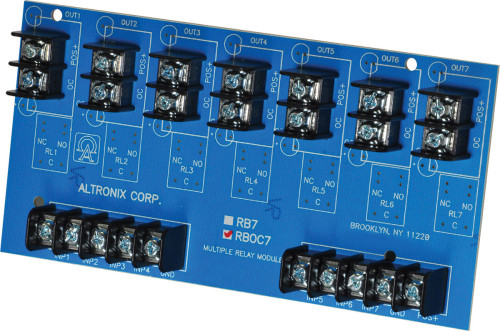

RBOC7

Relay Module, Open Collector, 7 - 12/24VDC

The RBOC7 Open Collector Module incorporates seven (7) open collector outputs capable of sinking 100mA which can be activated via positive (+) low current trigger inputs.

Specifications

  • Input
      • Voltage:
        • 12VDC or 24VDC operation
        • Seven (7) independent (3VDC to 24VDC @ 2mA minimum) positive inputs
  • Outputs
    • Seven (7) open collector outputs capable of sinking 100mA each.
  • Temperature
    • Operating: -25ºC to 55ºC ( -13ºF to 131ºF).
    • Storage: -25ºC to 70ºC ( -13ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.

Dimensions & Weight

Dimensions (approximate):
  • 3.25"W x 6.5"L x 1"H (82.55 mm W x 165.1 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weigtht: 0.1 Lbs. (0.05 kg).
  • Shipping Weigtht: 0.15 Lbs. (0.07 kg).
