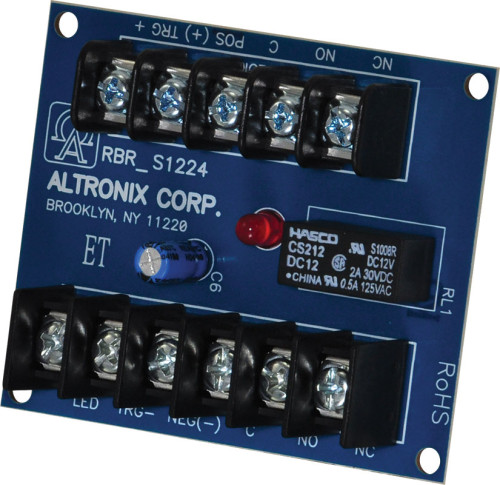

RBR1224

Relay Module, Toggle/Ratchet Relay, 12/24VDC, DPDT @.5A - 120VAC or 2A - 28VDC

RBR1224 Electronic Toggle/Ratchet Relay works with PGM alarm control panels, door control, keypads and more. RBR1224 is snap track mountable.

Specifications

  • Input
      • Voltage:
        • 12VDC or 24VDC operation
        • Positive (+) or negative (–) ultra sensitive trigger (3VDC to 24VDC @ 20mA minimum).
        • Current Draw: 20mA
  • Contact Rating
    • DPDT contacts rated at 0.5A/120VAC or 2A/28VDC.
  • Indicators (LED)
    • Trigger: Relay is triggered
    • Remote LED status output
  • Temperature
    • Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF).
    • Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF).
    • Relative Humidity: 85% +/-5%.

Dimensions & Weight

Dimensions (approximate):
  • 2.5"W x 3"L x 1"H (63.5 mm W x 76.2 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weigtht: 0.15 Lbs. (0.06 kg).
  • Shipping Weigtht: 0.25 Lbs. (0.11 kg).
