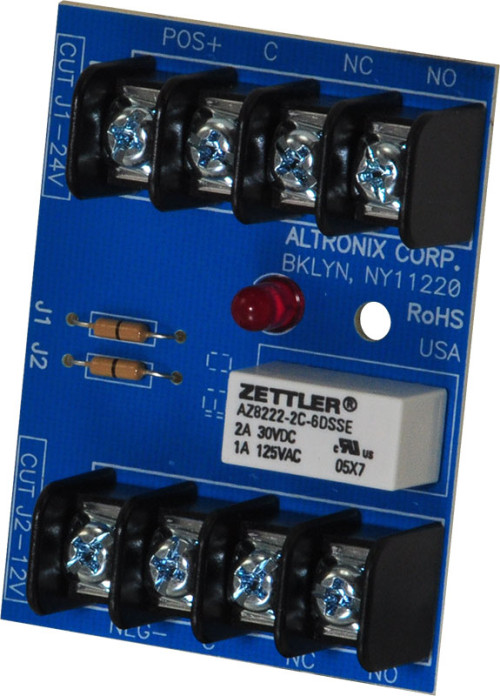

RBST

Relay Module, 6/12/24VDC, DPDT Contacts @ 1A - 120VAC or 2A - 28VDC

RBST relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.

Specifications

  • Input Voltage
    • 6VDC, 12VDC or 24VDC operation.
    • Current draw: 30mA.
  • Contact Rating
    • 1A/120VAC or 2A/28VDC DPDT contacts.
  • Temperature
    • Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF).
    • Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF).
    • Relative Humidity: 85% +/-5%

Dimensions & Weight

Dimensions (approximate):
  • 2"W x 2.75"L x 1"H (50.8 mm W x 69.85 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weigtht: 0.15 Lbs. (0.06 kg).
  • Shipping Weigtht: 0.25 Lbs. (0.11 kg).
