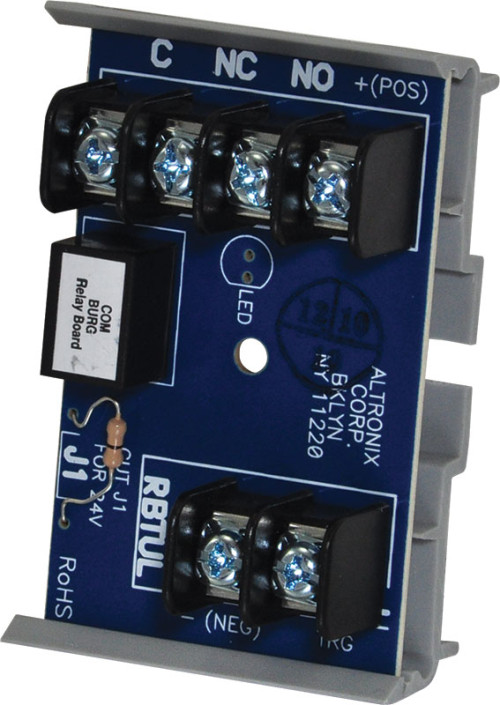

RBTUL

Relay Module, 12/24VDC, SPDT Contacts @ 1A - 28VDC

Altronix RBTUL sensitive and ultra sensitive UL Listed relay is designed for continuous duty. This rugged and dependable relay will handle any switching application.

Specifications

  • Input Voltage
    • 12VDC to 24VDC selectable operation.
    • Current draw: 30mA.
  • Contact Rating
    • 1A/28VDC SPDT contacts.
  • Temperature
    • Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF).
    • Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF).
    • Relative Humidity: 85% +/-5%

Agency Listings

UL Listed For:
Burglar Alarm System Accessory (UL365)

Dimensions & Weight

Dimensions (approximate):
  • 2"W x 2.75"L x 1"H (50.8 mm W x 69.85 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weigtht: 0.15 Lbs. (0.06 kg).
  • Shipping Weigtht: 0.25 Lbs. (0.11 kg).
