SMP3

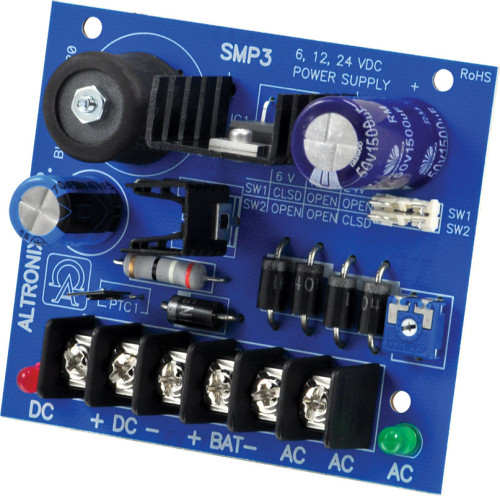

Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Board

Altronix SMP3 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Specifications

  • Input
    • 16VAC to 28VAC.
    • (Voltage Output/Transformer Selection Table).
  • Output
    • 6VDC, 12VDC or 24VDC selectable output.
    • 2.5A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Battery short circuit protection (circuit breaker).
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 6VDC: 8 BTU/Hr.
        • 12VDC: 15 BTU/Hr.
        • 24VDC: 31 BTU/Hr.
  • Additional Features
    • AC input and DC output LED indicators.
    • Extremely compact design.
    • Includes battery leads.
    • Snap Track compatible (order Altronix model number ST3).
    • DIN Rail Mount version available (order Altronix model #DPS3).

Dimensions & Weight

Dimensions (approximate):
  • 3"W x 3.5"L x 2"H (76.2 mm W x 88.9 mm L x 50.8 mm H).
Weights (approximate):
  • Product Weigtht: 0.25 Lbs. (0.113 kg).
  • Shipping Weigtht: 0.35 Lbs. (0.158 kg).
