SMP312C

Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 16-28VAC, Board, Includes BT124 and TP1640

These switching power supply/charger kits have a wide range of applications including: access control, security and CCTV system accessories that require additional power.

Specifications

  • Output
    • 12VDC output.
    • 2.5A continuous supply current.

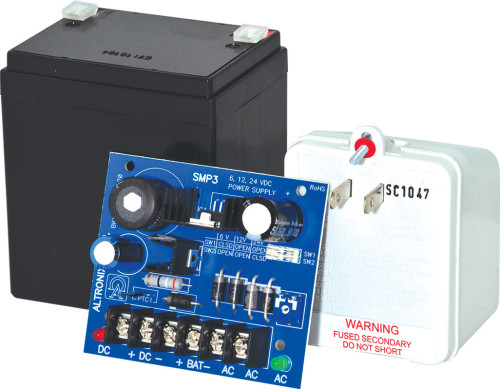

    • Kit includes: power supply, 12VDC 4AH rechargeable battery and 16.5VAC 40VA Class 2 Rated plug-in transformer.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Battery short circuit protection (circuit breaker).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating temperature: -20° C to 49° C ( -4° F to 120.2° F).
    • Storage temperature: -20° to 70° C ( -4° to 158° F).
      • BTU/Hr. (approx.):
        • 6VDC: 8 BTU/Hr.
        • 12VDC: 15 BTU/Hr.
        • 24VDC: 31 BTU/Hr.
    • System AC input VA requirement:
    • 6VDC/12VDC: 55.2VA.
    • 24VDC: 115VA.
  • Features
    • Extremely compact design.
    • Includes battery leads.
    • Snap Track compatible (order Altronix model number ST3).

Dimensions & Weight

Dimensions (approximate):
  • 0"W x 0"L x 0"H (0 mm W x 0 mm L x 0 mm H).
Weights (approximate):
  • Product Weigtht: 4.25 Lbs. (1.927 kg).
  • Shipping Weigtht: 4.75 Lbs. (2.154 kg).
