SMP3E

Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 16-28VAC, BC100 Enclosure

SMP3E power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC @ 2.5A continuous supply current. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Specifications

  • Input
    • 6VDC or 12VDC output use TP1640 or 24VDC output use T2428100.
  • Output
    • 6VDC, 12VDC or 24VDC selectable output.
    • 2.5A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current 0.3A.
    • Battery short circuit protection (circuit breaker).
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Features
    • Includes battery leads.

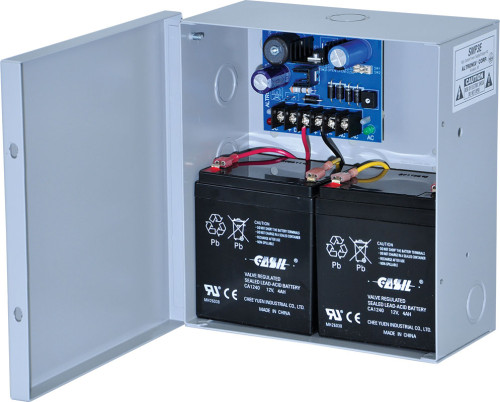

    • Power supply/charger with enclosure.
    • Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 6VDC: 8 BTU/Hr.
        • 12VDC: 15 BTU/Hr.
        • 24VDC: 31 BTU/Hr.
      • System AC input VA requirement:
        • 6VDC/12VDC: 55.2VA.
        • 24VDC: 115VA.

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/4AH Batteries.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 2.8 Lbs. (1.27 kg).
  • Shipping Weigtht: 3.8 Lbs. (1.72 kg).
