SMP3PM

Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Supervision, Board

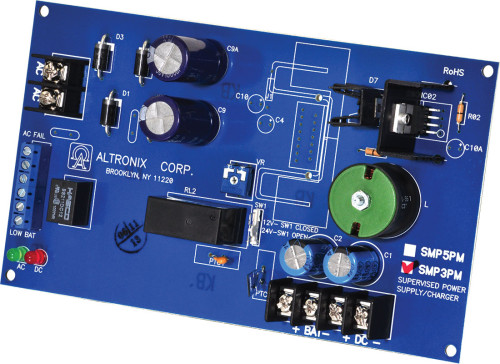

SMP3PM supervised power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control,security and CCTV system accessories that require additional power.

Specifications

  • Input
    • 12VDC applications use TP1640, T2428100.
    • 24VDC applications use T2428100.
  • Output
    • 12VDC or 24VDC selectable output.
    • 2.5A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.3A.
    • Zero voltage drop when switching over to battery backup.
    • Battery leads included.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
      • Temperature:
        • Operating Temperature: 0° C to 49° C (32° F to 120° F).
        • Storage Temperature: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 15 BTU/Hr.
        • 24VDC: 31 BTU/Hr.
      • System AC input VA requirement:
        • 12VDC: 55.2VA.
        • 24VDC: 115VA.

Dimensions & Weight

Dimensions (approximate):
  • 7"W x 4.05"L x 1.35"H (177.8 mm W x 102.87 mm L x 34.29 mm H).
Weights (approximate):
  • Product Weigtht: 0.4 Lbs. (0.181 kg).
  • Shipping Weigtht: 0.5 Lbs. (0.226 kg).
