SMP5E

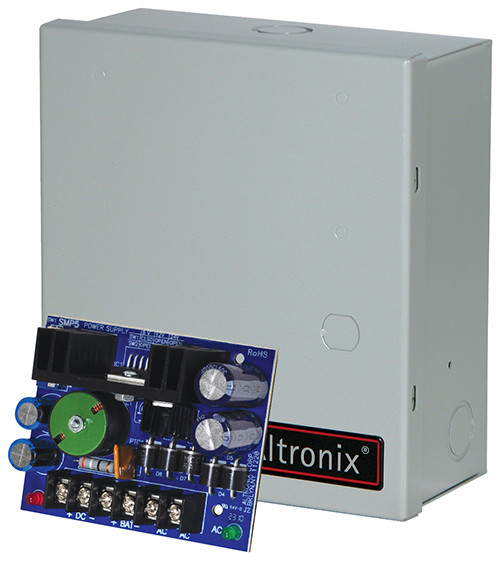

Power Supply/Charger Kit, Single Output, 6/12/24VDC @ 4A, 24/28VAC, BC100 Enclosure

Altronix SMP5E power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Specifications

  • Input
    • 6VDC applications use TP1640.
    • 12VDC applications use T2428100.
    • 24VDC applications use T2428175.
  • Output
    • 6VDC, 12VDC or 24VDC selectable output.
    • 4A continuous supply current*.
    • Thermal overload and short circuit protection.
    • Filtered and electronically regulated outputs.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 300mA.
    • Automatic switch over to stand-by battery.
    • Battery short circuit protection (PTC).
    • (Batteries are sold separately).
  • Additional Features
    • AC input and DC output LED indicators.
    • Extremely compact design.
    • Includes battery leads, nylon fastener and enclosure.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 6VDC: 13 BTU/Hr.
        • 12VDC: 25 BTU/Hr.
        • 24VDC: 49 BTU/Hr.

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 4.1 Lbs. (1.85 kg).
  • Shipping Weigtht: 4.8 Lbs. (2.18 kg).
