T1CVKT6SD

6-Door Altronix/CDVI Access and Power Integration Kit - Trove1C1 with Tango1B, ACMS8CB

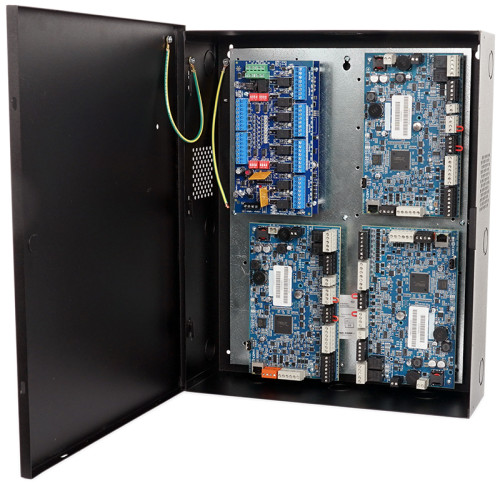

Altronix T1CVKT6SD kit consists of Trove1 enclosure, TC1 CDVI/Altronix backplane with one (1) Tango1B PoE Driven Power Supply and one (1) PTC access power controller. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to six (6) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Specifications

  • Tango1B PoE Driven Power Supply/Charger
      • Ethernet Input
        • 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W)
      • Power Output
        • (When using 802.3bt 90W):
        • 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W).
        • Combined output not to exceed 65W.
        • When charging batteries:
        • 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
        • Combined output not to exceed 55W
      • Ethernet Output
        • Pass-through Ethernet Port (data only).
      • Battery Charging
        • Capacity: One (1) LiFePO4 battery within enclosure
        • Type: LiFePO4 (lithium iron phosphate only)
        • Failover: Upon AC loss, instantaneous
        • Unique technology allows for single battery to backup 12VDC and/or 24VDC systems
        • (Batteries are sold separately).
      • Supervision
        • Loss of PoE Input.
        • Battery Supervision
      • Indicators (LED)
        • Input: Indicates input voltage is present.
        • Output: Indicates normal operating condition.
        • PoE Type: PoE Class Indicator
        • Supervision: PoE Fail or BAT Fail
  • ACMS8CB Dual Input Access Power Controller
      • Inputs
        • Voltage: 12VDC and 24VDC from Tango1B.
        • Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized.
        • Input PTC Rating: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC
        • Eight (8) independently controlled PTC outputs
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • Form “C” Relays rated 28VAC or VDC @ 2.5A
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
        • Output PTCs: 2.5A.
      • Indicators LED
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
      • Individual voltage LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.)
        • 54 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
MM12 Mounting Magnets, Twelve (12) Quantity per Pack
MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack
MM4 Mounting Magnets, Four (4) Quantity per Pack
MM8 Mounting Magnets, Eight (8) Quantity per Pack
NetWay1BT Midspan Injector, Single Port 802.3bt, 10/100/1000, PoE/PoE+/Hi-PoE, Aux. Class 2 power-limited output rated @ 56VDC/90W, 115/230VAC
NetWay4BT 4-Port Managed 802.3bt 4PPoE Midspan Injector, 360W total power, 115/230VAC
NetWay8BT Network Managed 802.3bt 4PPoE Midspan, 8-port, 10/100/1000, 90W max per port (480W total power), Battery Charging, 115/230VAC
WM100 Magnetic Cable Tie Mounts
WM25 Magnetic Cable Tie Mounts
WM5 Magnetic Cable Tie Mounts
MM4S Mounting Magnets, Four (4) Quantity per Pack
MM8S Mounting Magnets, Eight (8) Quantity per Pack

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weigtht: 15.5 Lbs. (7 kg).
  • Shipping Weigtht: 19.5 Lbs. (8.9 kg).
