T1PHK14S

4-Door Altronix/Openpath Access and Power Integration Kit - Trove1C1 with AL400ULXB2, ACM4, VR6, PDS8. Trove1 Series

Altronix T1PHK14S kit consists of Trove1 enclosure, TC1 Openpath/Altronix backplane with one (1) 12VDC 4A or 24VDC @ 3A power supply/charger, one (1) fused access power controller, one dual input power distribution module and one (1) voltage regulator. This kit also accommodates up to one (1) Openpath Core, Elevator Board, 4-Port or 8-Port modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Specifications

  • AL400ULXB2 Power Supply/Charger
      • Input
        • Voltage: 115VAC, 60Hz, 3.5A max.
        • Input Fuse: 5A / 250V.
      • Outputs
        • Voltage: 12VDC or 24VDC selectable.
        • Current: 4A @ 12VDC or 3A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/7AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
  • Indicators LED
    • Input: 115VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • PDS8 Dual Input Power Distribution Module
      • Input
        • Voltage: 12VDC from VR6 and 24VDC from AL400ULXB2.
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC.
        • Red: 24VDC.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from AL400ULXB2.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • ACM4 Access Power Controller
      • Input
        • Voltage: 24VDC from AL400ULXB2.
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 24VDC.
        • Four (4) independently controlled 2.5A outputs:
        • a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
        • b) Four (4) dry form “C” 5A rated relay outputs.
        • c) Any combination of the above.
        • Four (4) auxiliary power outputs (unswitched).
      • Outputs Ratings
        • Fuses: 3A / 32VDC.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 40 BTU/Hr.
        • 24VDC: 77 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
MM12 Mounting Magnets, Twelve (12) Quantity per Pack
MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack
MM4 Mounting Magnets, Four (4) Quantity per Pack
MM8 Mounting Magnets, Eight (8) Quantity per Pack
WM100 Magnetic Cable Tie Mounts
WM25 Magnetic Cable Tie Mounts
WM5 Magnetic Cable Tie Mounts

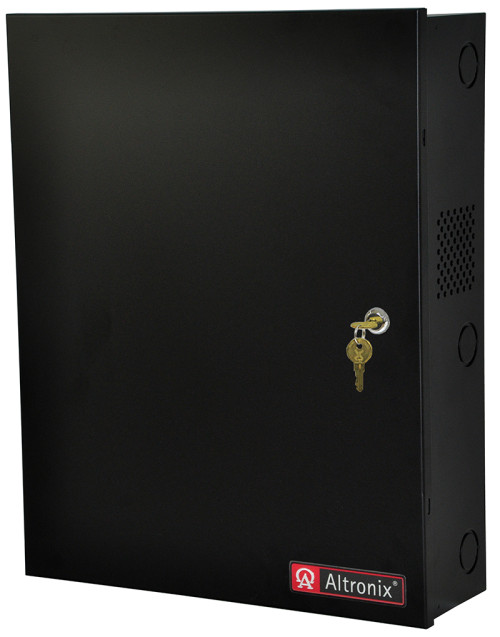

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weigtht: 15.5 Lbs. (7 kg).
  • Shipping Weigtht: 19.5 Lbs. (8.9 kg).
